1.GPS/Glonas/Galileo/BDS Multi-mode Satellite Positioning System）
Using multi-mode satellite positioning system, you can arbitrarily choose GPS, BDS, GLONASS, Galileo satellite combination for positioning, making positioning more accurate, positioning accuracy up to ±1 meter

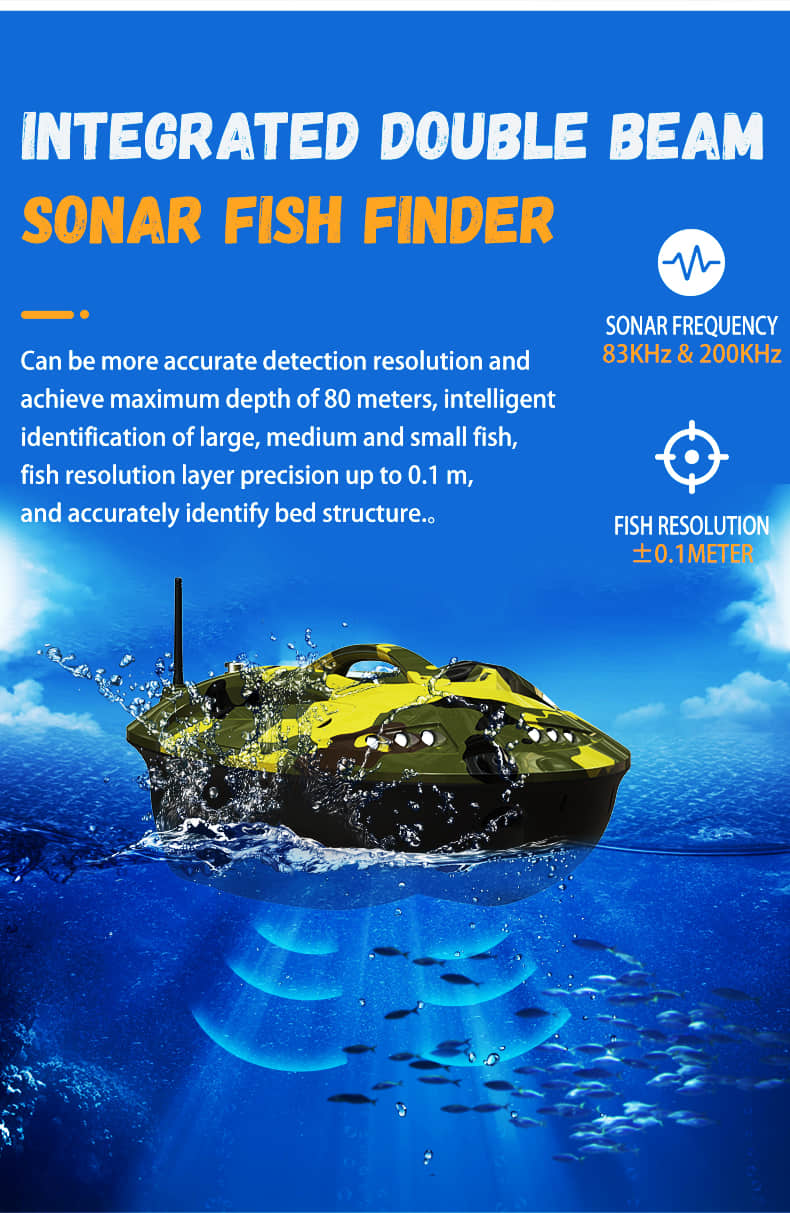

2.Sonar Fish Finder System
Sonar transducer 125KHZ is used
, the maximum 35 m of the detection depth, intelligent identification of large, medium and small fish, the fish resolution accuracy can be ± 0.1 m

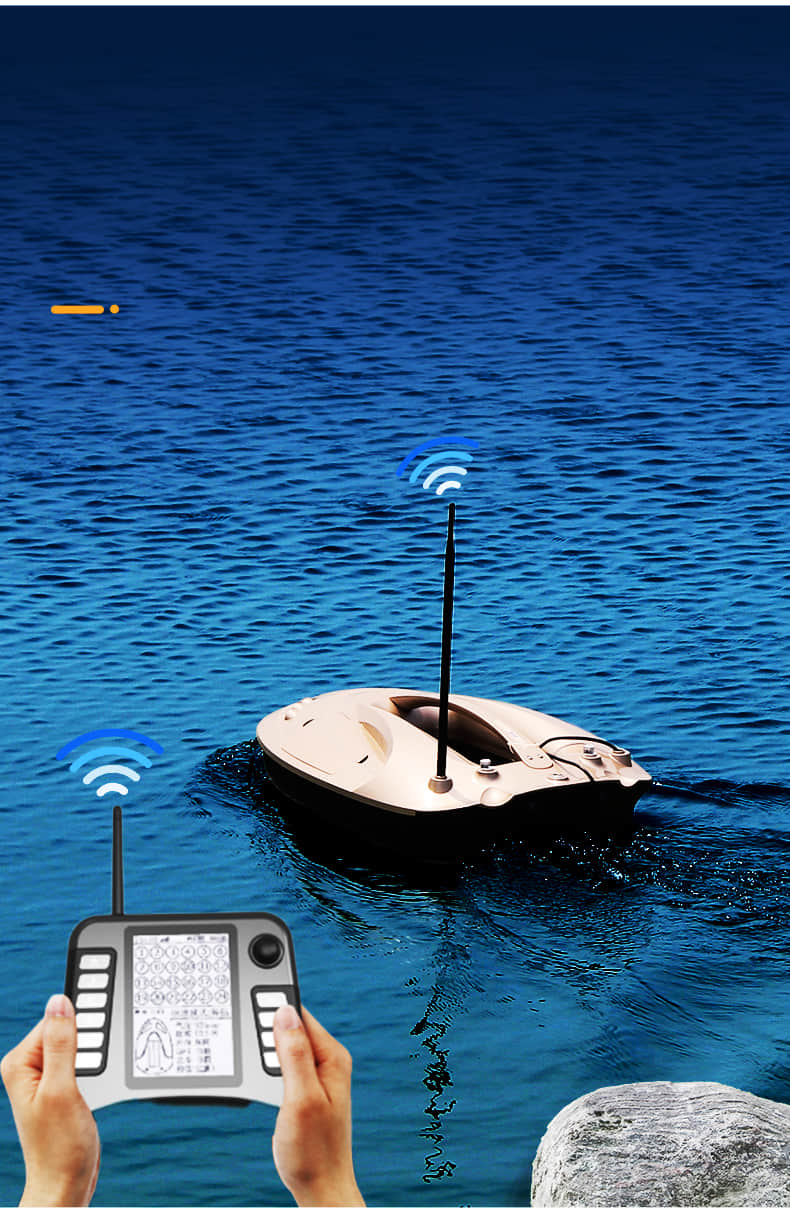

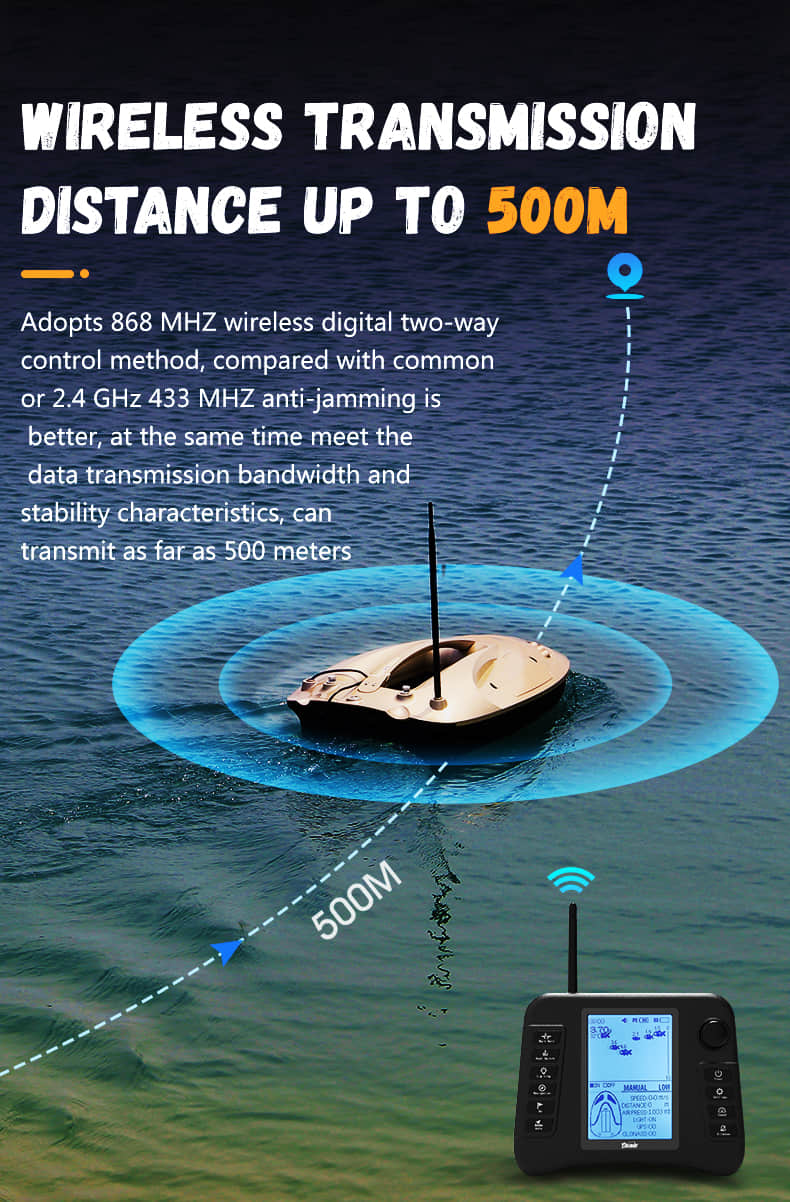

3.Adopt 2.4GHz two-way data transmission mode.
Using 2.4g wireless communication, the control distance of the boat can reach 500m

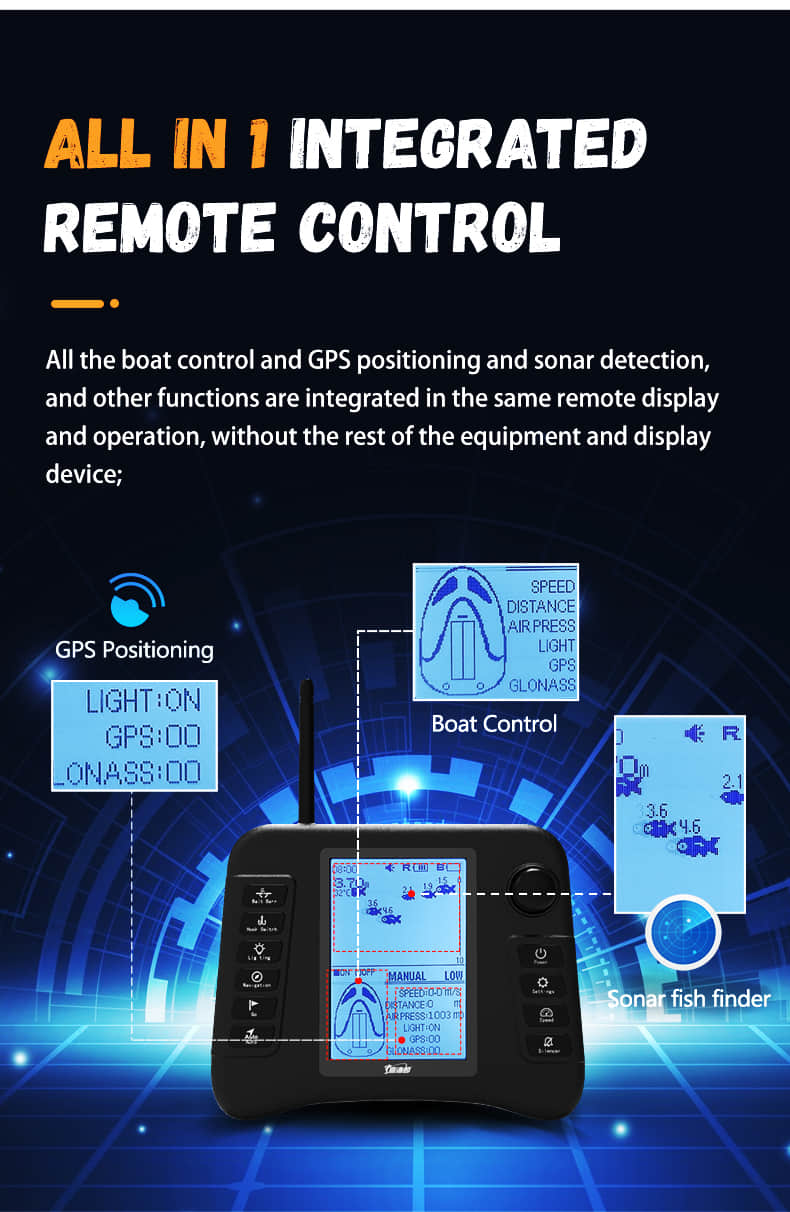

4.Integrated remote control with high integration density
All hull control, GPS, sonar detection and other functions are integrated in the remote control to display and operate, and there is no need to add the remaining equipment and display instruments;
5.Automated Return
When low power or weak wireless signal is detected, the baitboat will return to the original point automatically."
6.Large screen with strong contrast
Use a 5 inch black and white screen with strong contrast, large font and good visibility.
7.Speed is adjustable
The boat can operate in 3 modes: low speed, standard speed and high speed. The 3 speeds can be switched at any time.
8.three operating modes
With manual mode, autopolite mode, navigation mode 3 Running state.

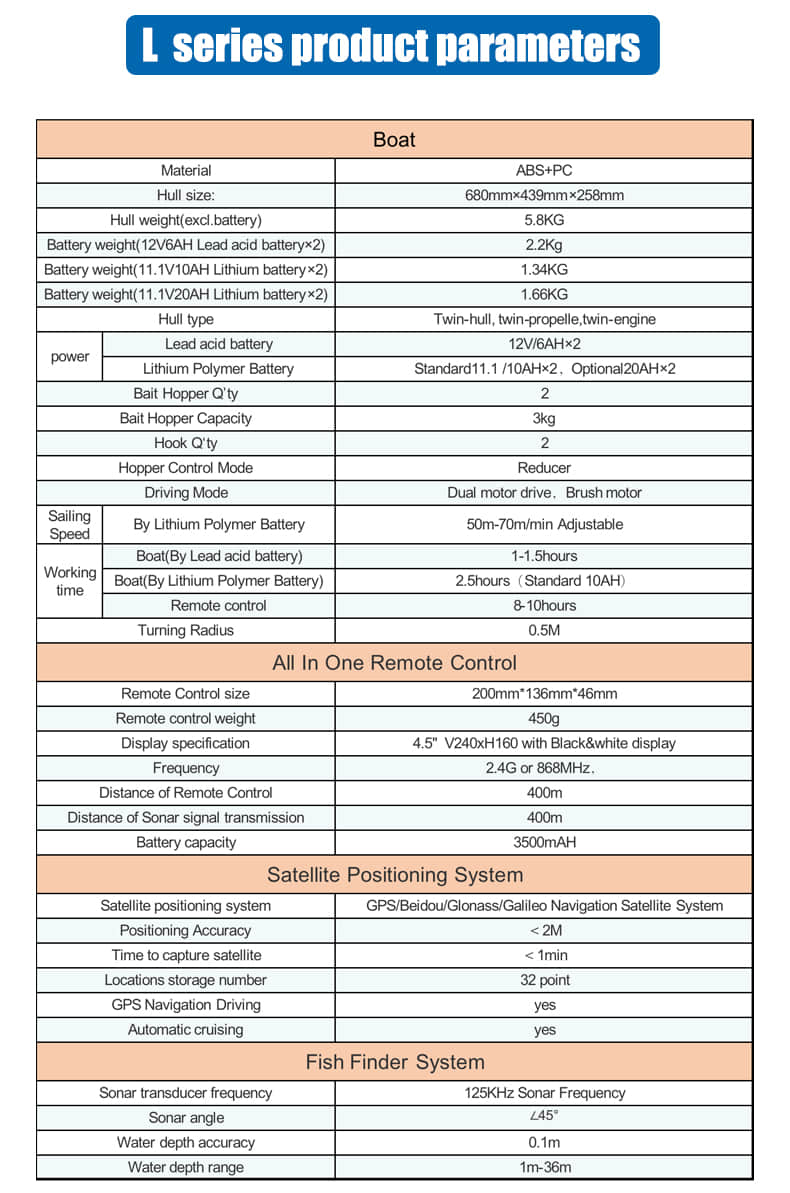

parameter

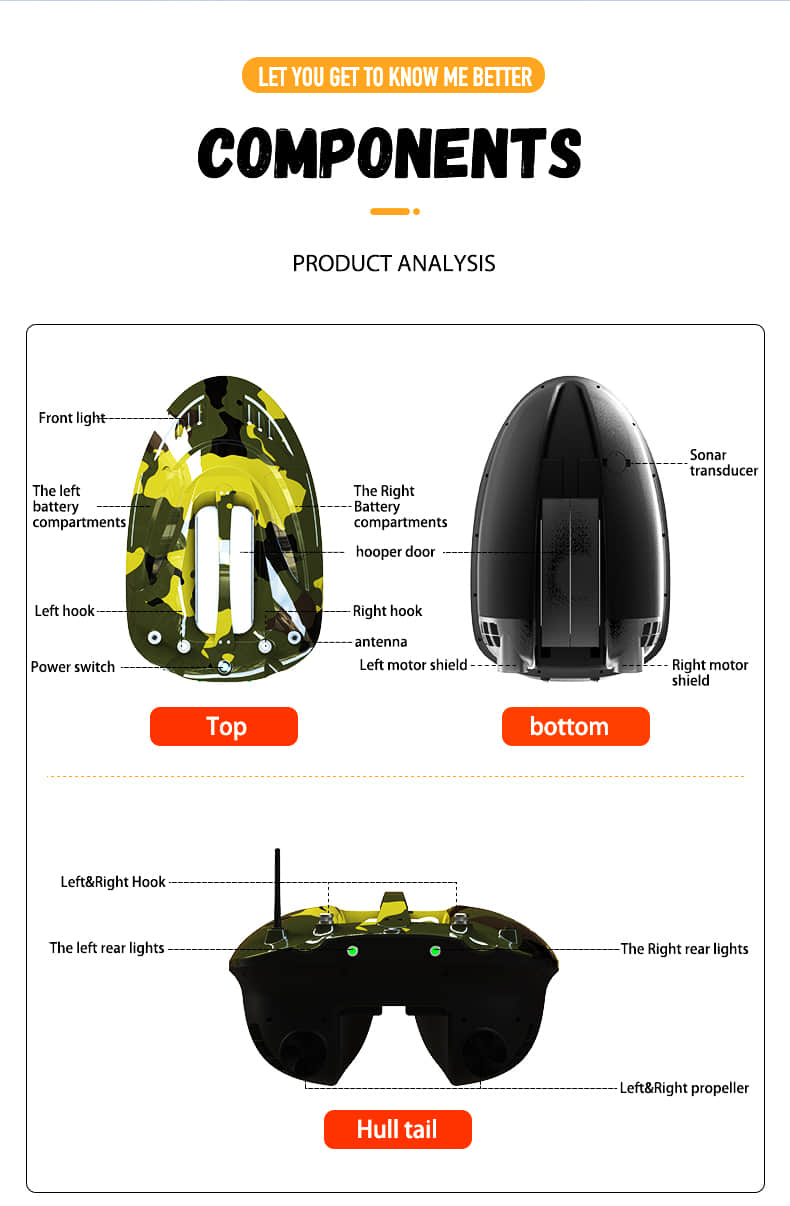

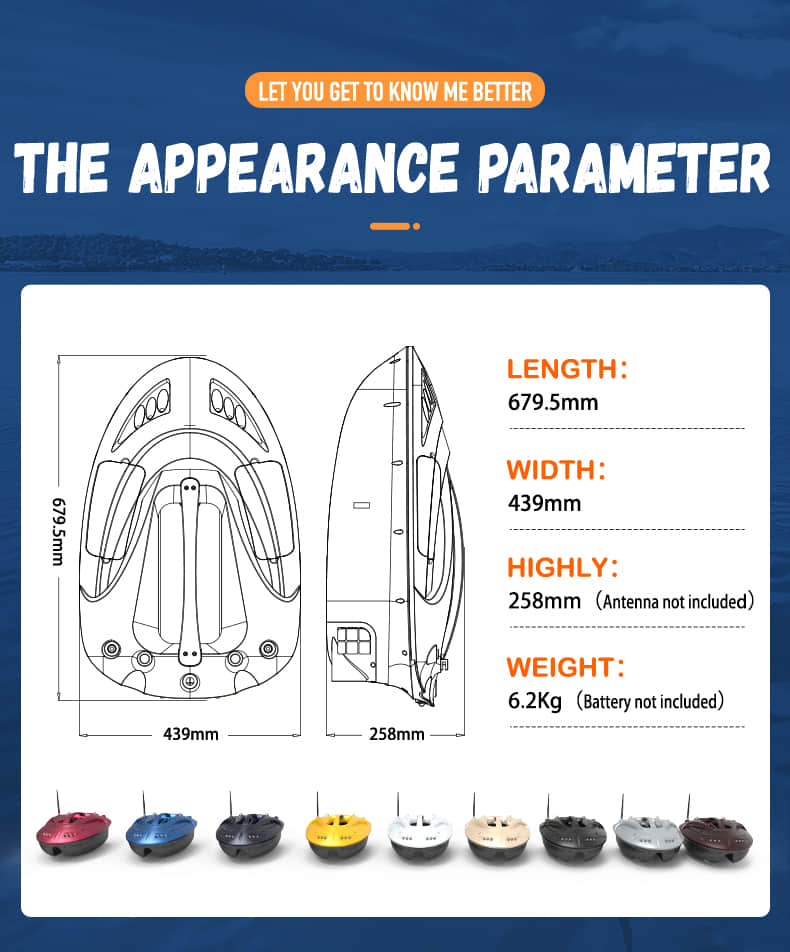

Boat
Hull size：680mm×439mm×258mm
Hull weight(excl.battery)：5.8Kg
Battery weight(11.1V10AH Lithium battery×2)：1.34Kg
Battery weight(11.1V20AH Lithium battery×2)：1.66Kg

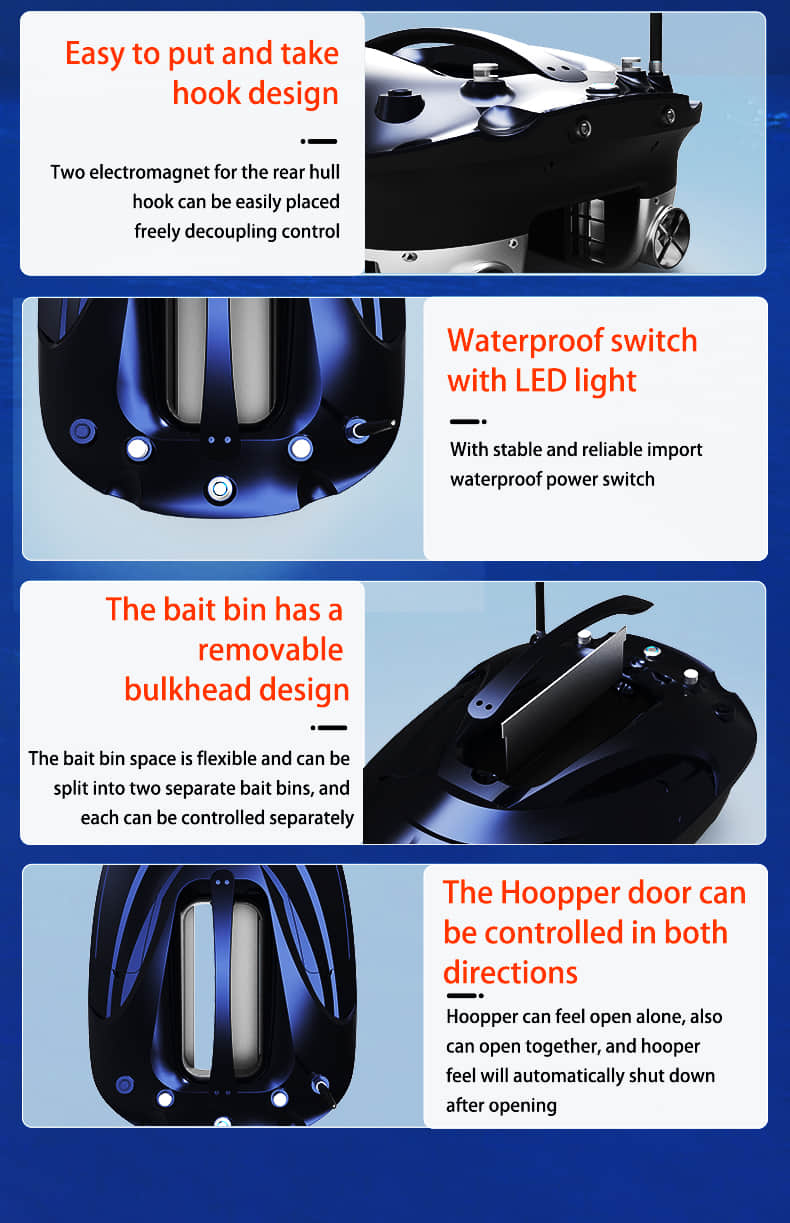

Bait Hopper Q’ty：2
Bait Hopper Capacity：3Kg
Hook Q‘ty:2
Hopper Control Mode:Reducer
Sailing Speed:50m-70m/min Adjustable
Working time(Boat):3hours（Standard 10AH×2）
Working time(Remote control):8-10hours

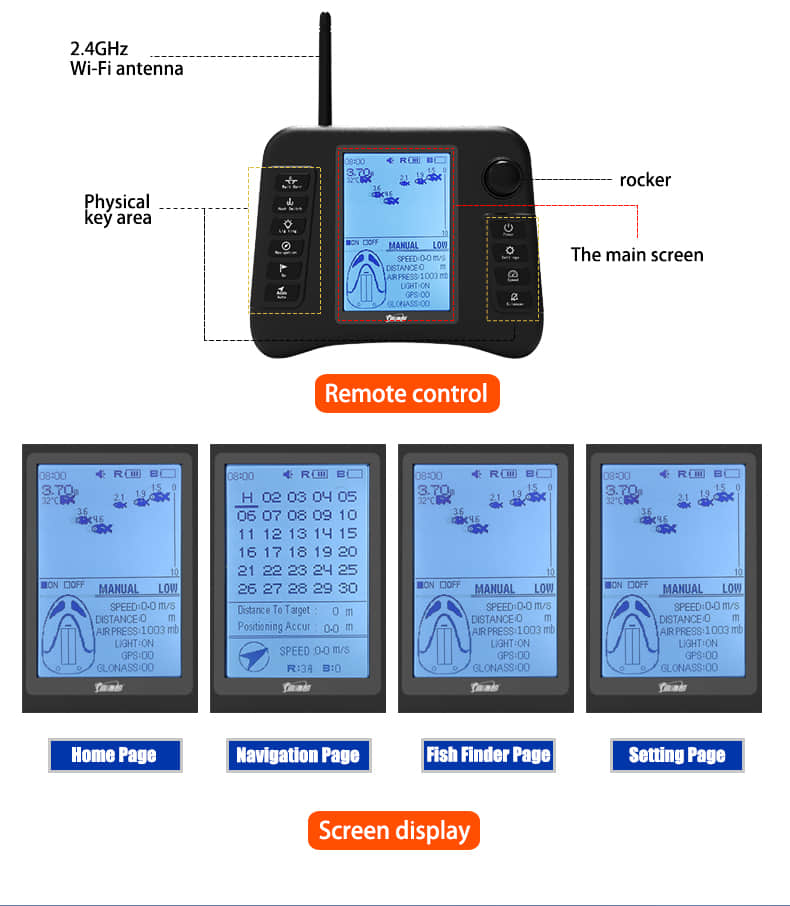

All In One Remote Control
Remote Control size:200mm*136mm*46mm
Remote control weight：450g
Display specification：5" 8 bit Black&White display V240xH160
Distance of remote control：500m
Battery capacity：8000mAH
Satellite Positioning System
Satellite positioning system：GPS/Beidou/Glonass/Galileo Navigation Satellite System
Positioning accuracy：＜2M
Time to capture satellite：＜1min
Locations storage number：30 point
GPS Navigation Driving：yes
Automatic cruising：yes
Fish Finder System
Sonar transducer frequency：125KHz sonar frequency
Sonar angle:83KHz：∠45°
Water depth accuracy：±0.1m
Water depth range：0.6m-35m
Frequency Radio：2.4GHz
Range Max Operational:300m
