Feature and Function
1.GPS/Glonas/Galileo/BDS Multi-mode Satellite Positioning System）
Using multi-mode satellite positioning system, you can arbitrarily choose GPS, BDS, GLONASS, Galileo satellite combination for positioning, making positioning more accurate, positioning accuracy up to ±1 meter minimum

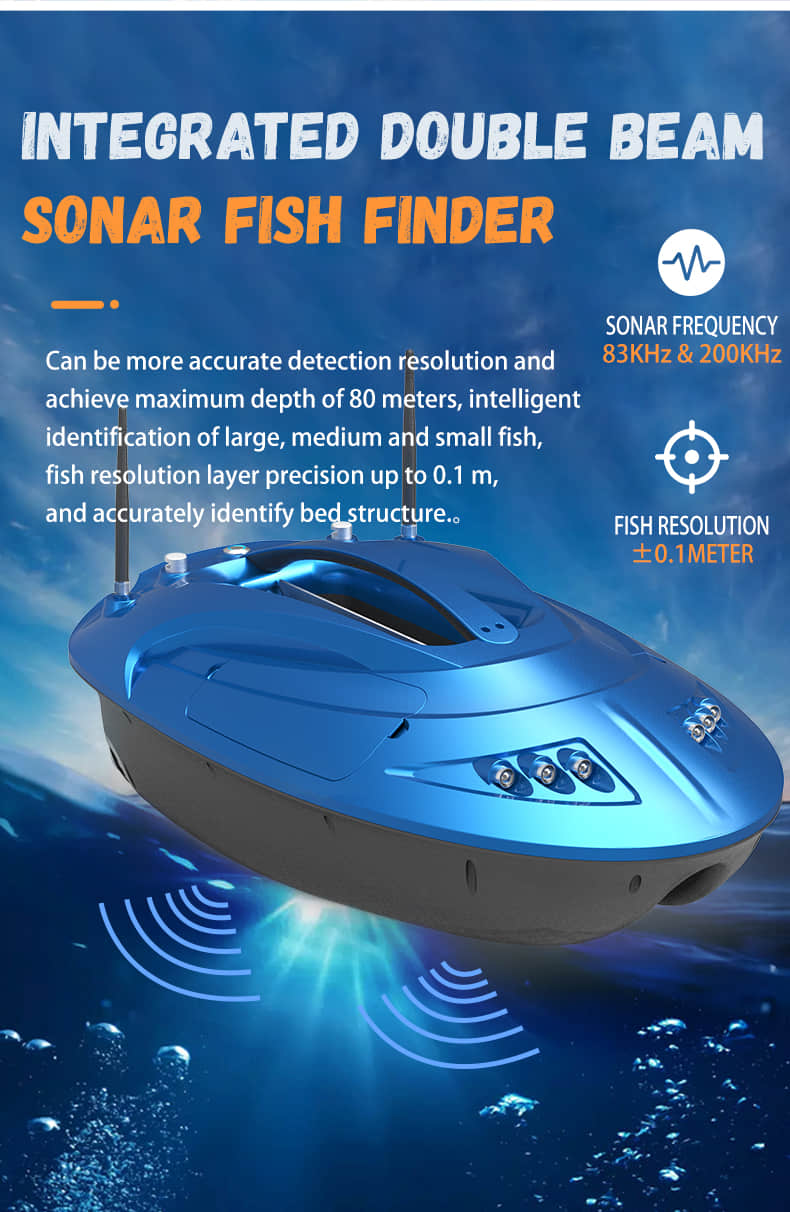

2.Professional Level Dual Frequency Sonar Fish Finder System
Dual probe design with sonar frequency of 83KHz and 200KHz, which can achieve more accurate detection resolution and to achieve the maximum 80 m of the detection depth, intelligent identification of large, medium and small fish, the fish resolution accuracy can be ± 0.1 m and the riverbed structure can be accurately identified.RTS Real Time Sonar Signal, First Time Fish Signal Display,Fish Arches Display, Checking the Big/Small Fish and Fish School more Accurately,Bottom Contour Indicator (Three colors, Yellow, Red and Blue to Distinguish the Stiffness of the Underwater Material )

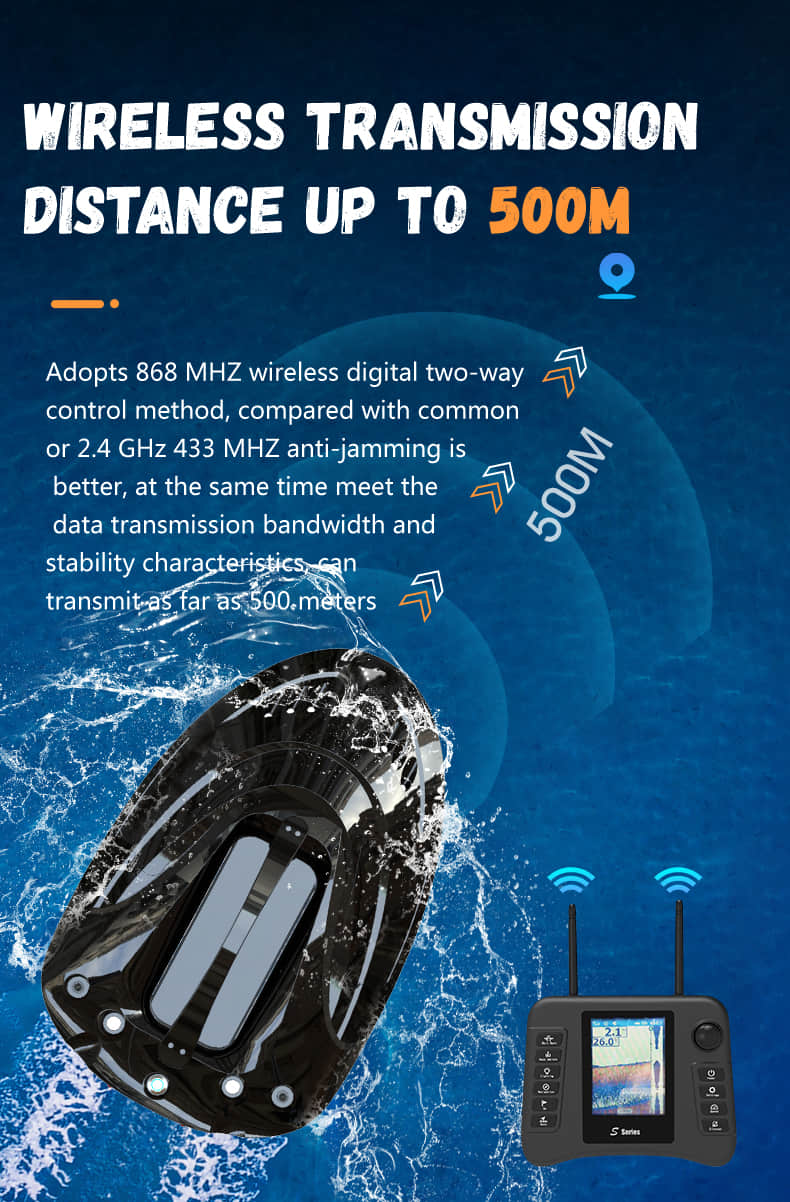

3.Adopt 868MHz two-way data transmission mode.
Dual 868MHz data transmission mode, stable transmission signal, boat control distance up to 500 meters, sonar signal transmission distance up to 300 meters.

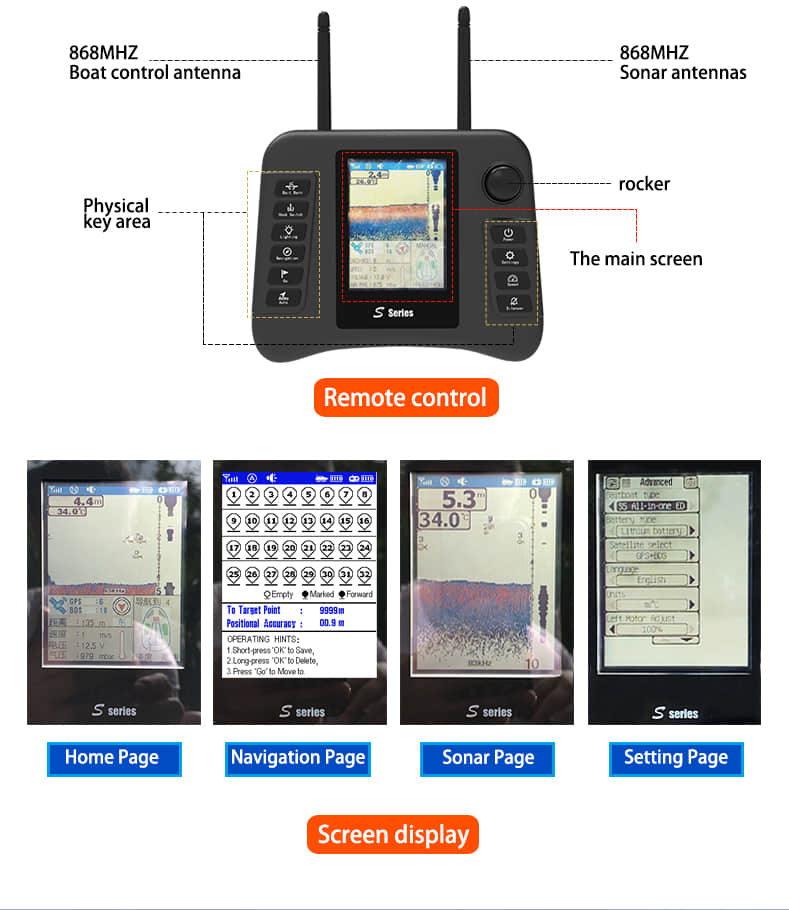

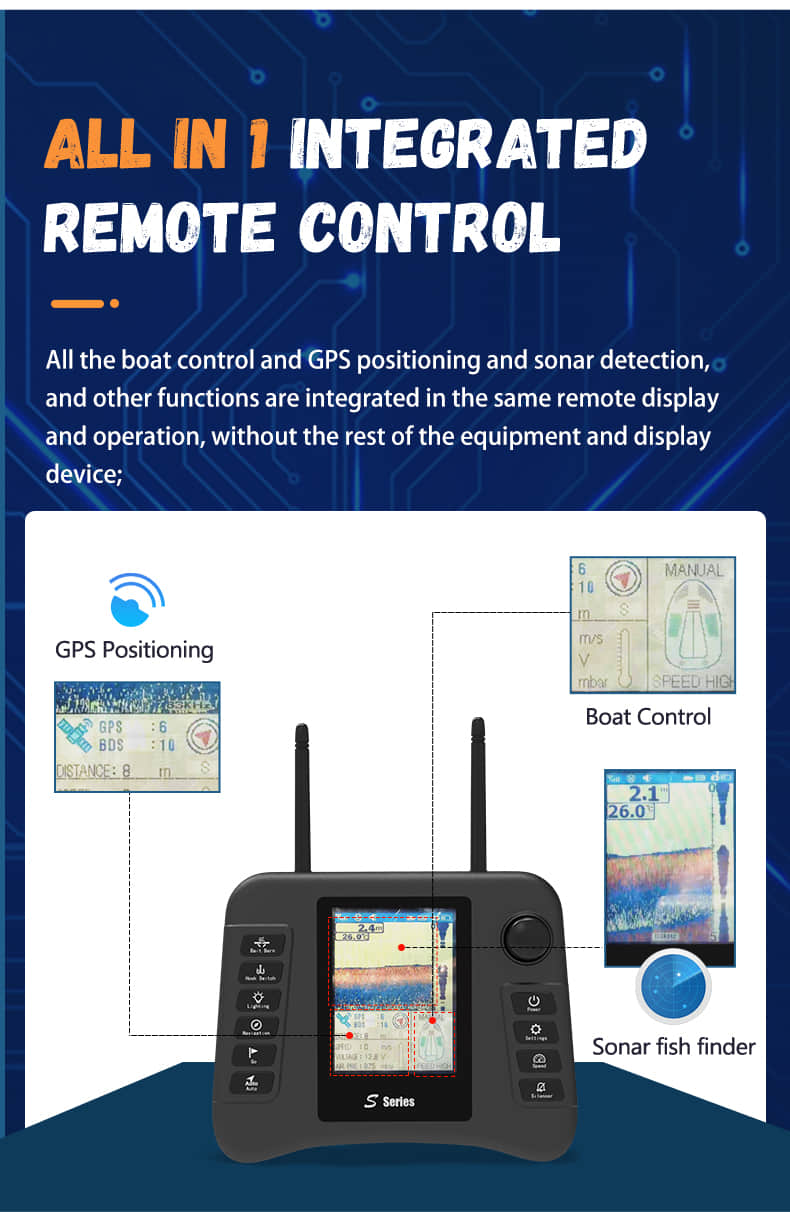

4.Integrated remote control with high integration density
All hull control, GPS, sonar detection and other functions are integrated in the remote control to display and operate, and there is no need to add the remaining equipment and display instruments;

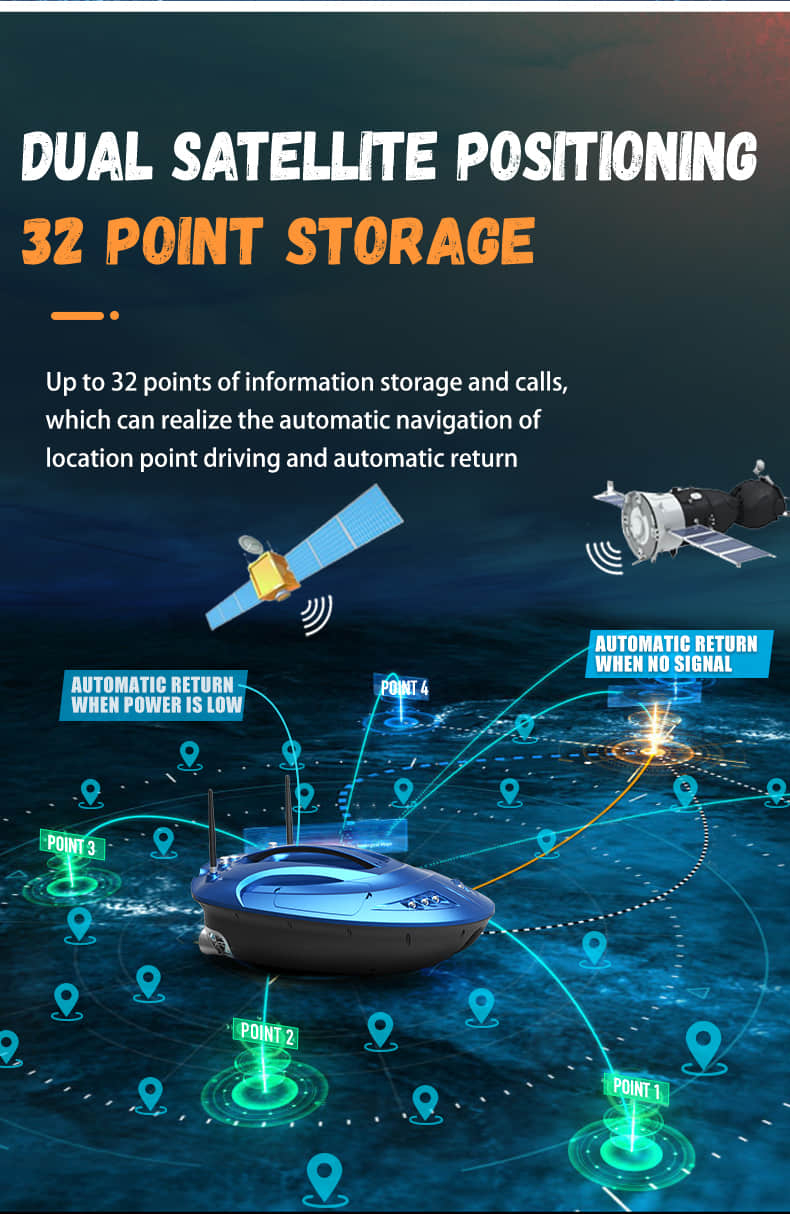

5.Automated Return
When low power or weak wireless signal is detected, the baitboat will return to the original point automatically."
6.The screen is visible in daylight
With Toshiba's semi-reflective and semi-transparent LCD screen, it still has good visibility under direct sunlight.
7.Speed is adjustable
The boat can operate in 3 modes: low speed, standard speed and high speed. The 3 speeds can be switched at any time.
8.three operating modes
With manual mode, autopolite mode, navigation mode 3 Running state.
9.Fully automatic operation
You can freely choose "navigation only", "navigation + bait casting + return H point", "navigation + bait casting + decoupling + return H point" and other automatic operation modes.

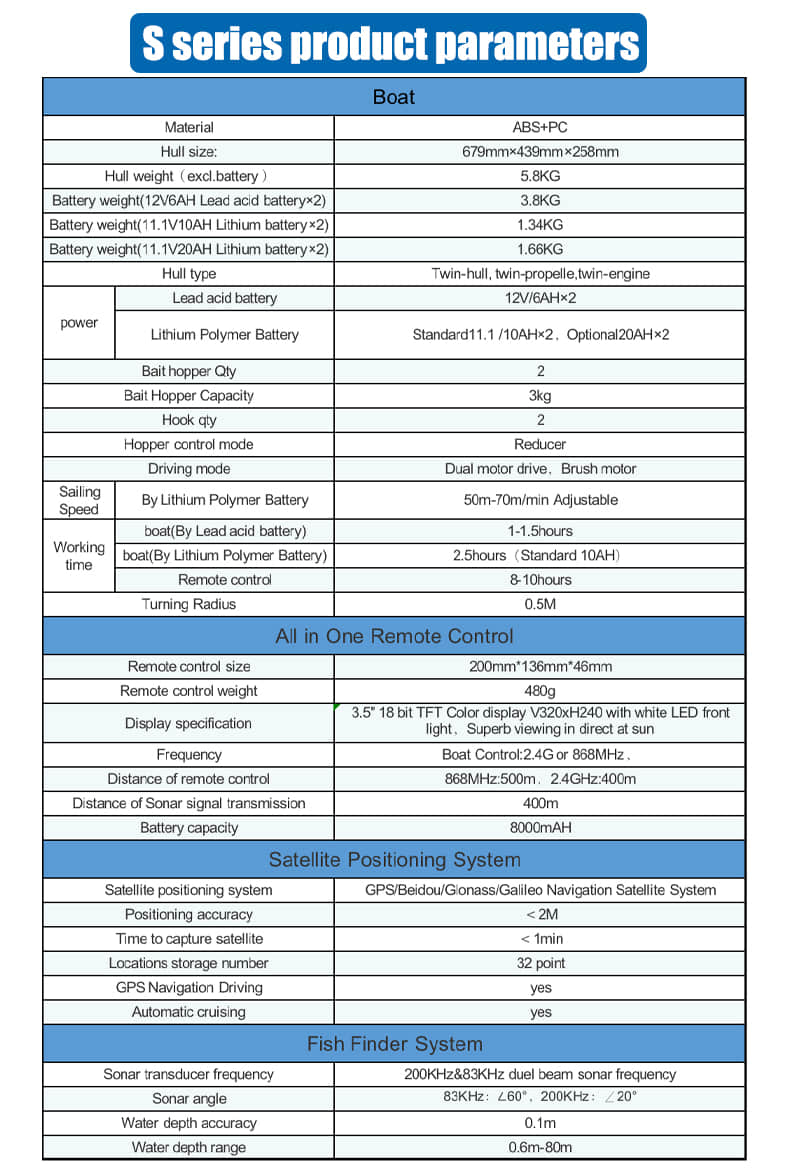

parameter
Boat

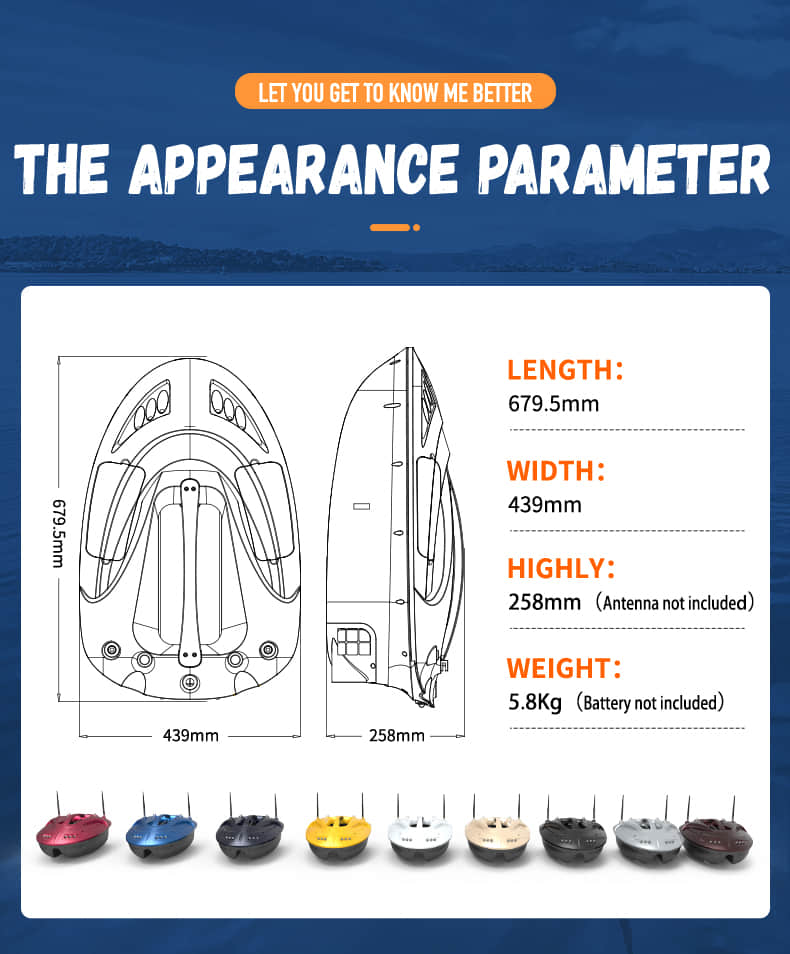

Hull size：680mm×439mm×258mm
Hull weight(excl.battery)：5.8Kg
Battery weight(11.1V10AH Lithium battery×2)：1.34Kg
Battery weight(11.1V20AH Lithium battery×2)：1.66Kg
Bait Hopper Q’ty：2
Bait Hopper Capacity：3Kg
Hook Q‘ty:2
Hopper Control Mode:Reducer
Sailing Speed:50m-70m/min Adjustable
Working time(Boat):3hours（Standard 10AH×2）
Working time(Remote control):8-10hours
All In One Remote Control
Remote Control size:200mm*136mm*46mm
Remote control weight：450g
Display specification：3.5" 18 bit TFT Color display V320xH240 with white LED front light，Superb viewing in direct at sun
Distance of remote control：500m
Distance of Sonar signal transmission：400m
Battery capacity：8000mAH
Satellite Positioning System
Satellite positioning system：GPS/Beidou/Glonass/Galileo Navigation Satellite System
Positioning accuracy：＜2M
Time to capture satellite：＜1min
Locations storage number：32 point
GPS Navigation Driving：yes
Automatic cruising：yes
Fish Finder System
Sonar transducer frequency：200KHz&83KHz duel beam sonar frequency
Sonar angle:83KHz：∠60°，200KHz：∠20°
Water depth accuracy：±0.1m
Water depth range：0.6m-80m
Frequency Radio：868MHz
Range Max Operational:300m
