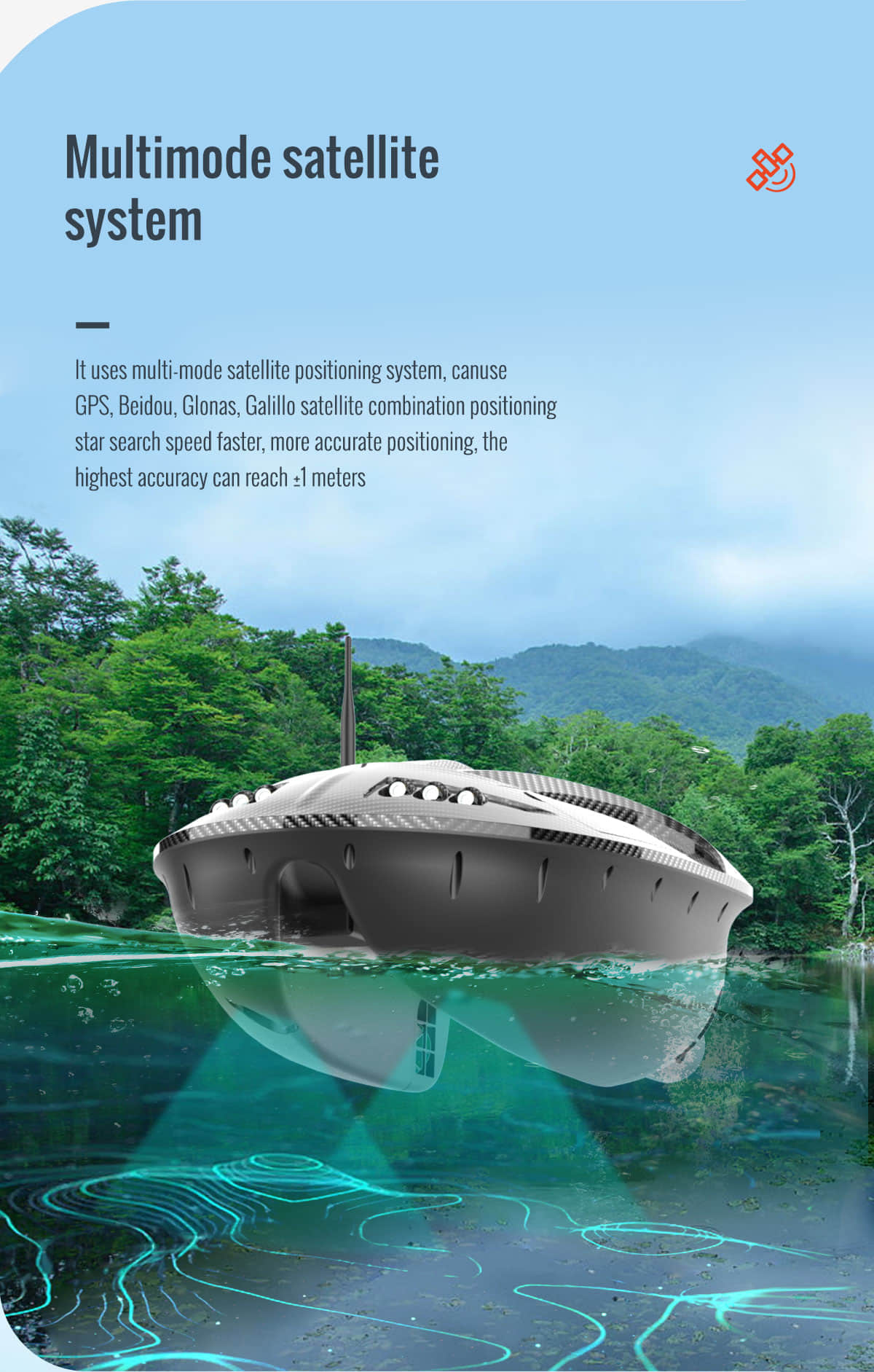

1.GPS/Glonas/Galileo/BDS Multi-mode Satellite Positioning System）
Using multi-mode satellite positioning system, you can arbitrarily choose GPS, BDS, GLONASS, Galileo satellite combination for positioning, making positioning more accurate, positioning accuracy up to ±1 meter minimum

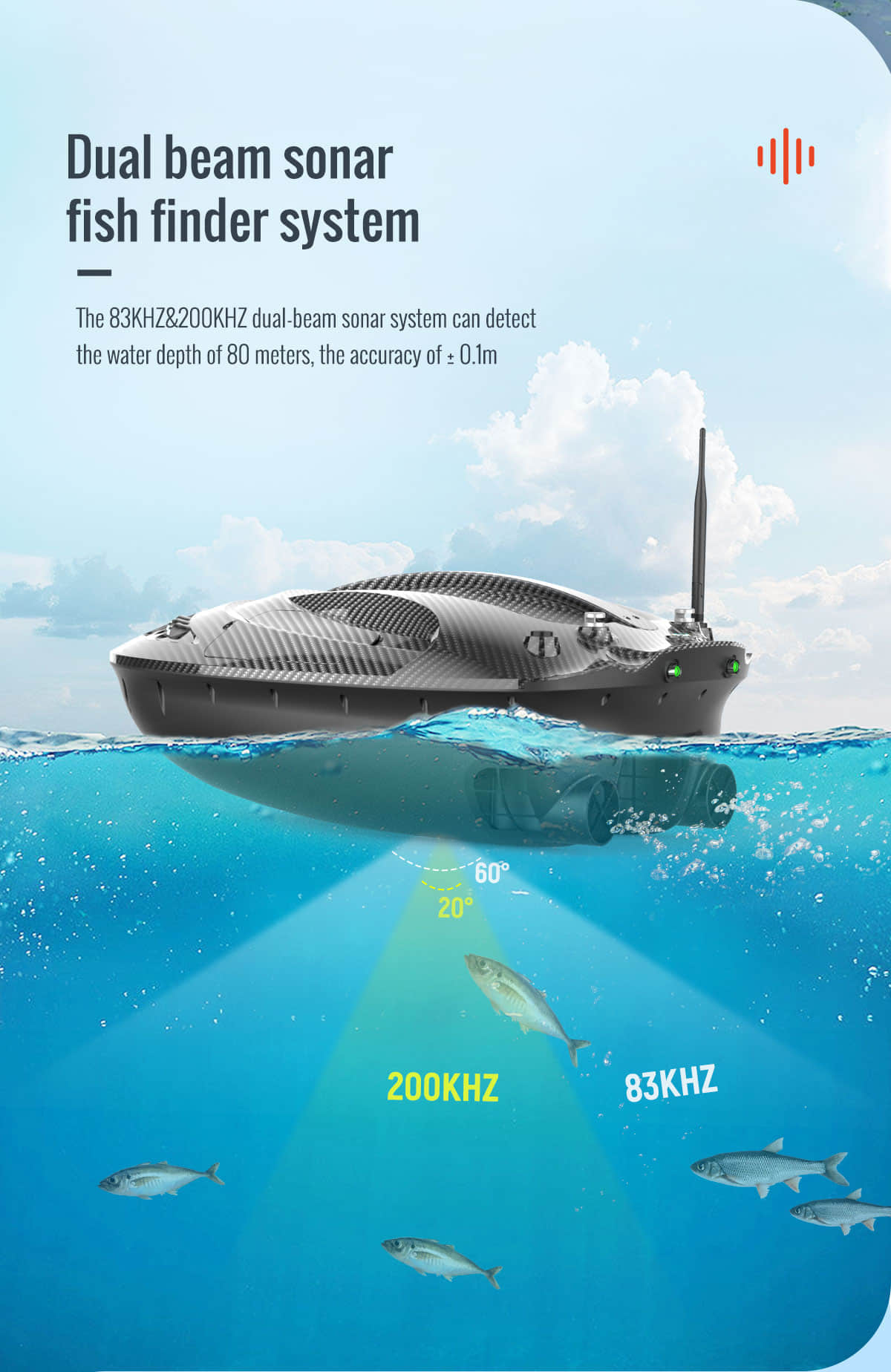

2.Professional Level Dual Frequency Sonar Fish Finder System
Dual probe design with sonar frequency of 83KHz and 200KHz, which can achieve more accurate detection resolution and to achieve the maximum 80 m of the detection depth, intelligent identification of large, medium and small fish, the fish resolution accuracy can be ± 0.1 m and the riverbed structure can be accurately identified.

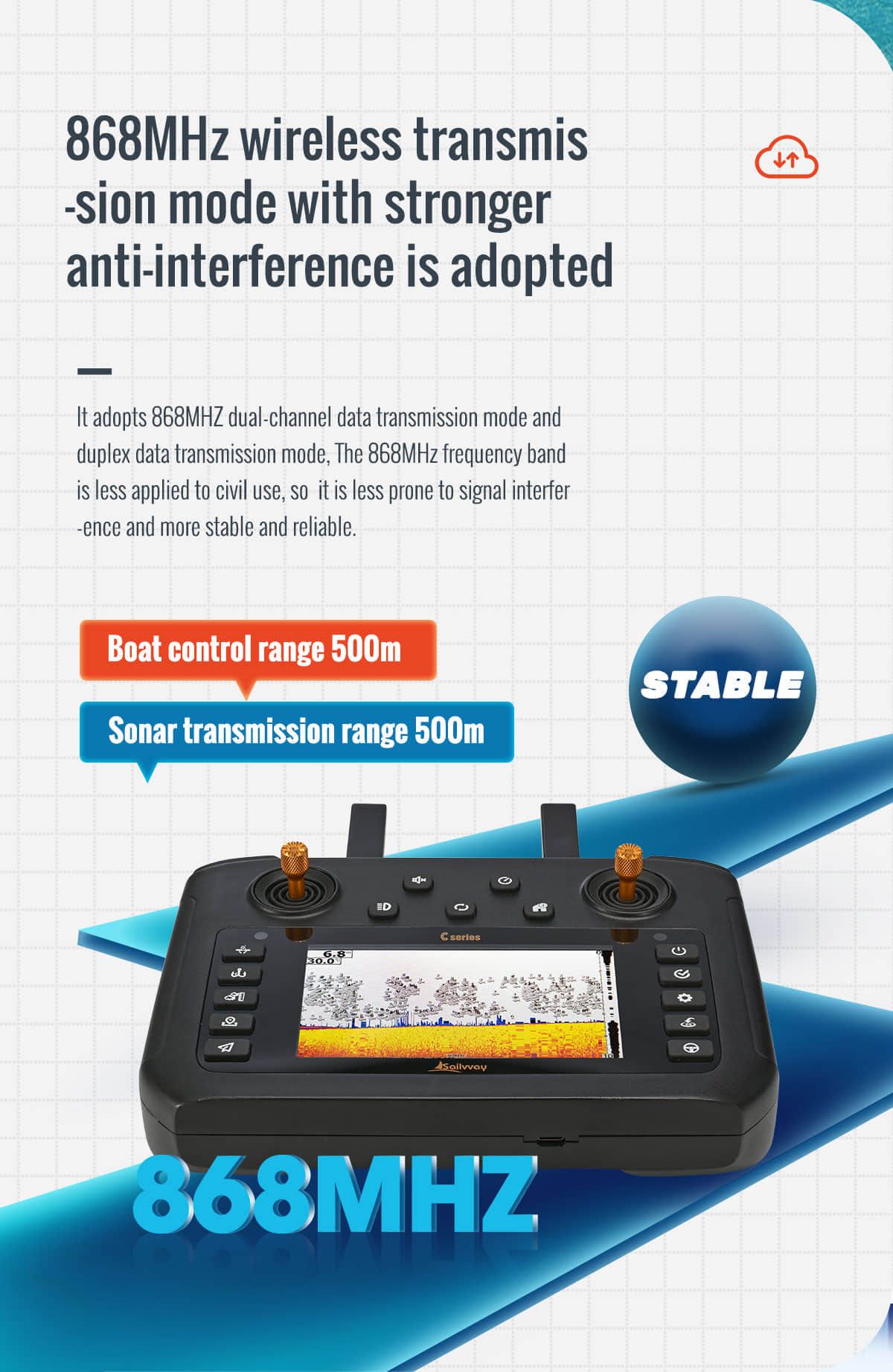

3.Adopt 868MHz two-way data transmission mode.
Dual 868MHz data transmission mode, stable transmission signal, boat control distance up to 500 meters, sonar signal transmission distance up to 300 meters.

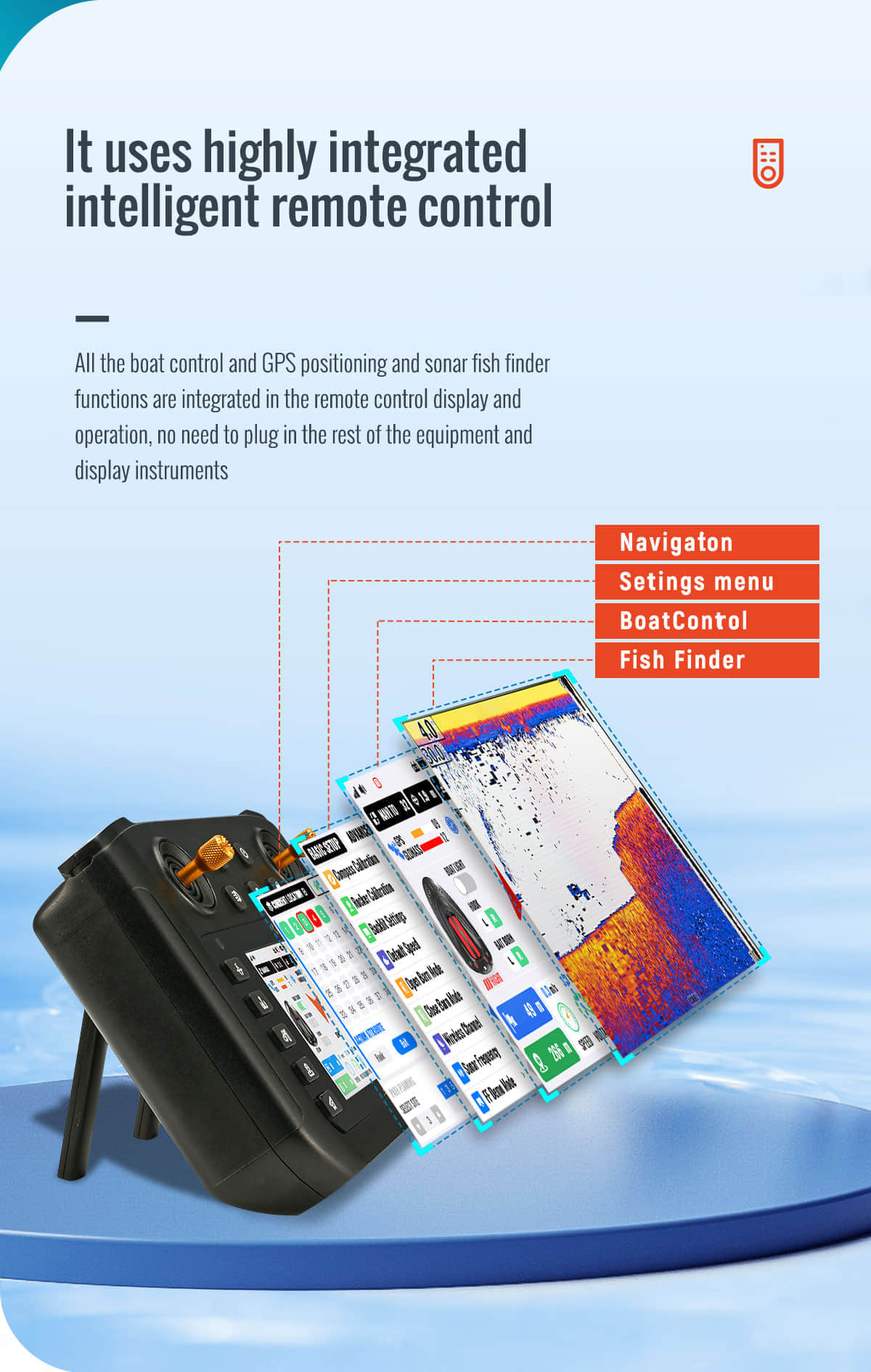

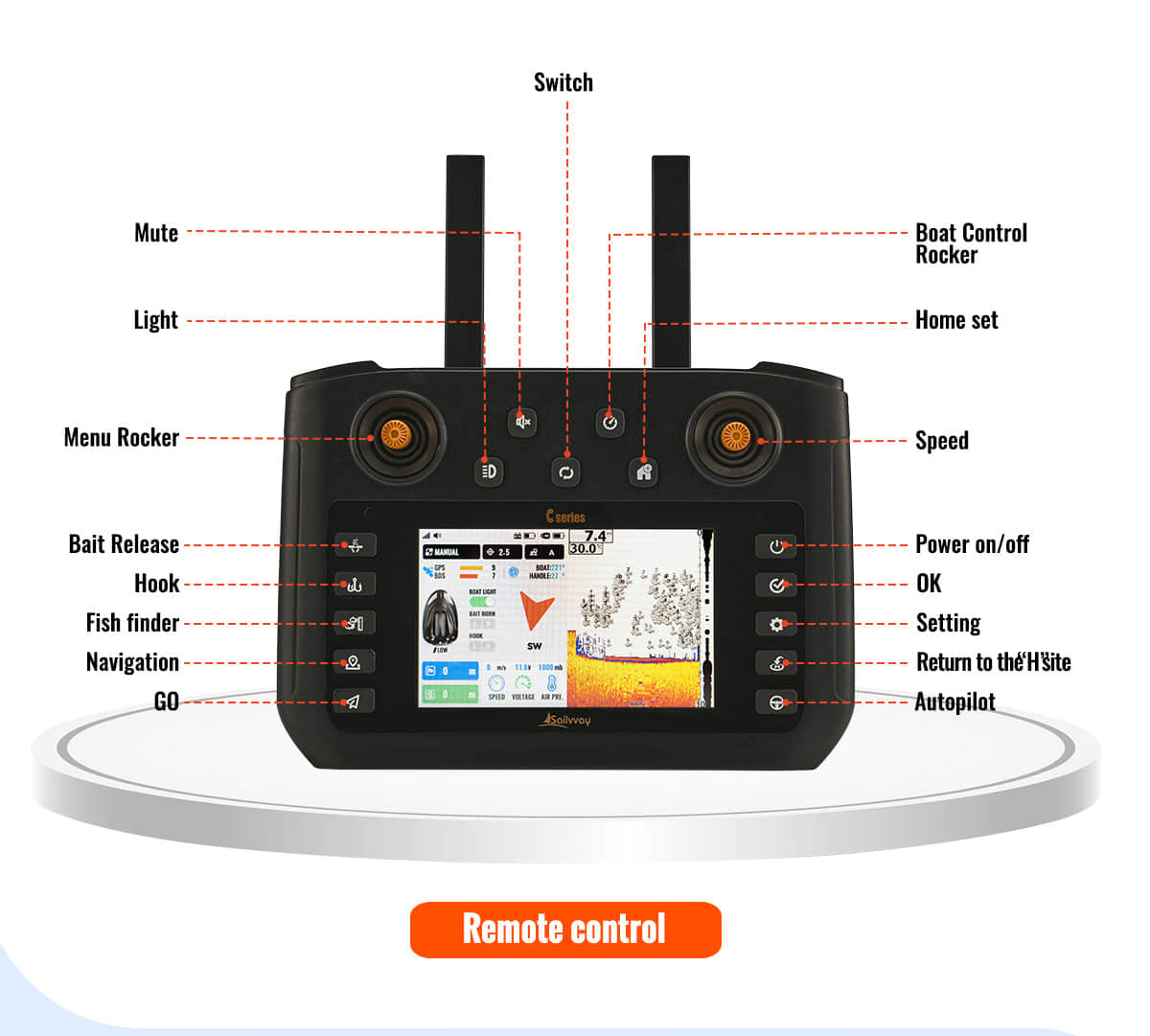

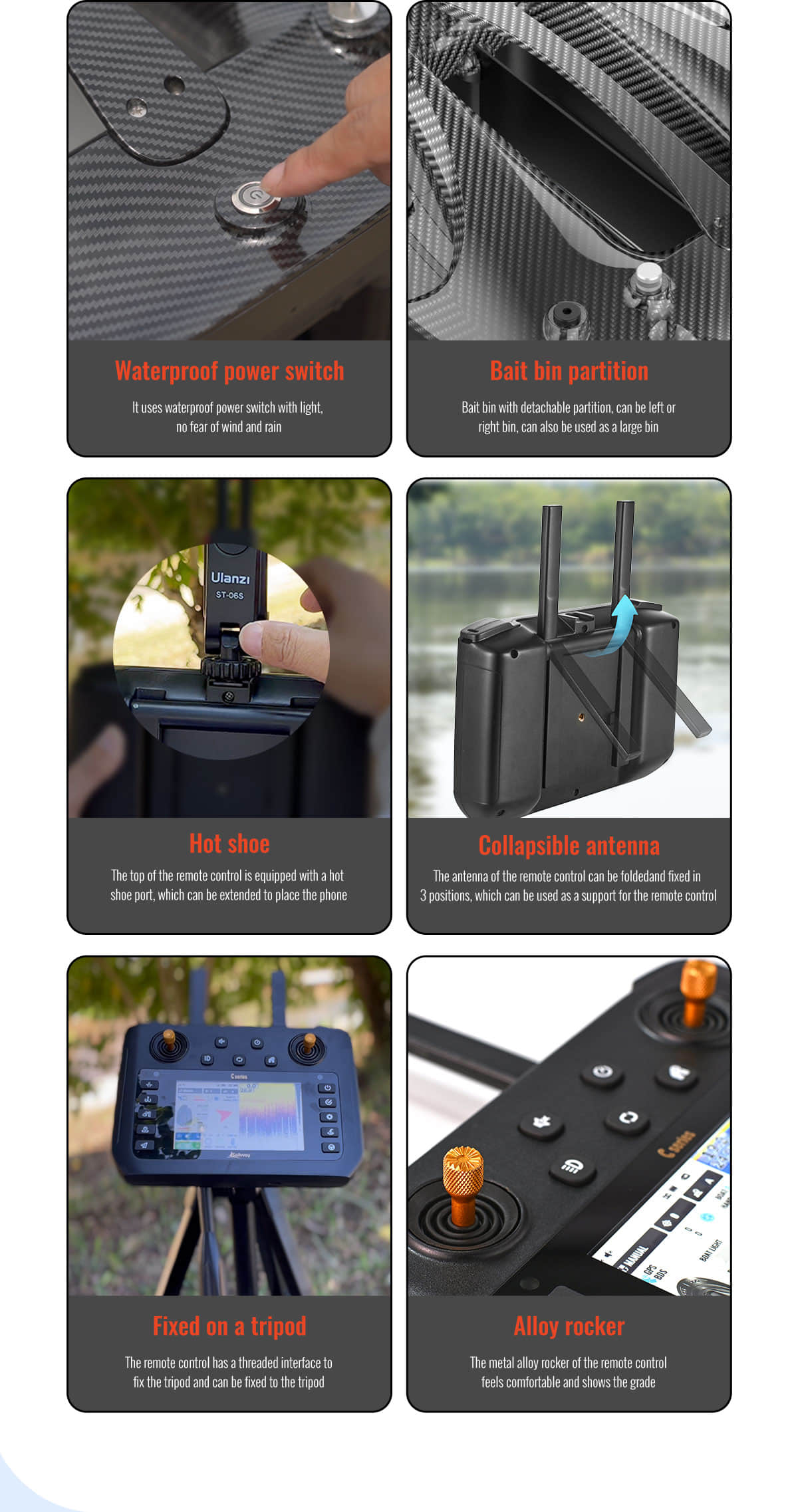

4.Integrated remote control with high integration density
All hull control, GPS, sonar detection and other functions are integrated in the remote control to display and operate, and there is no need to add the remaining equipment and display instruments;

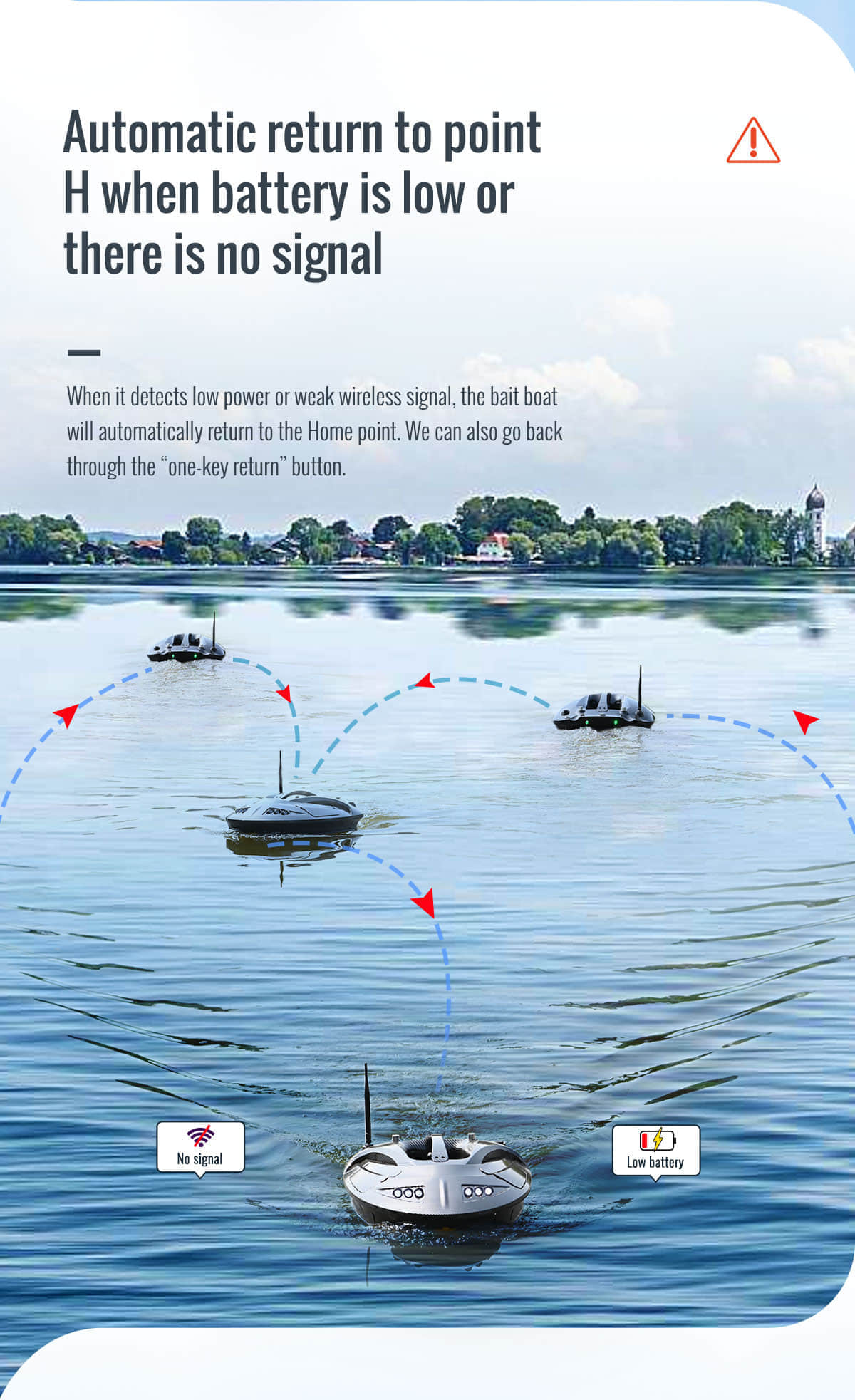

5.Automated Return
When low power or weak wireless signal is detected, the baitboat will return to the original point automatically."
6.The screen is visible in daylight
With Toshiba's semi-reflective and semi-transparent LCD screen, it still has good visibility under direct sunlight.
7.Speed is adjustable
The boat can operate in 3 modes: low speed, standard speed and high speed. The 3 speeds can be switched at any time.

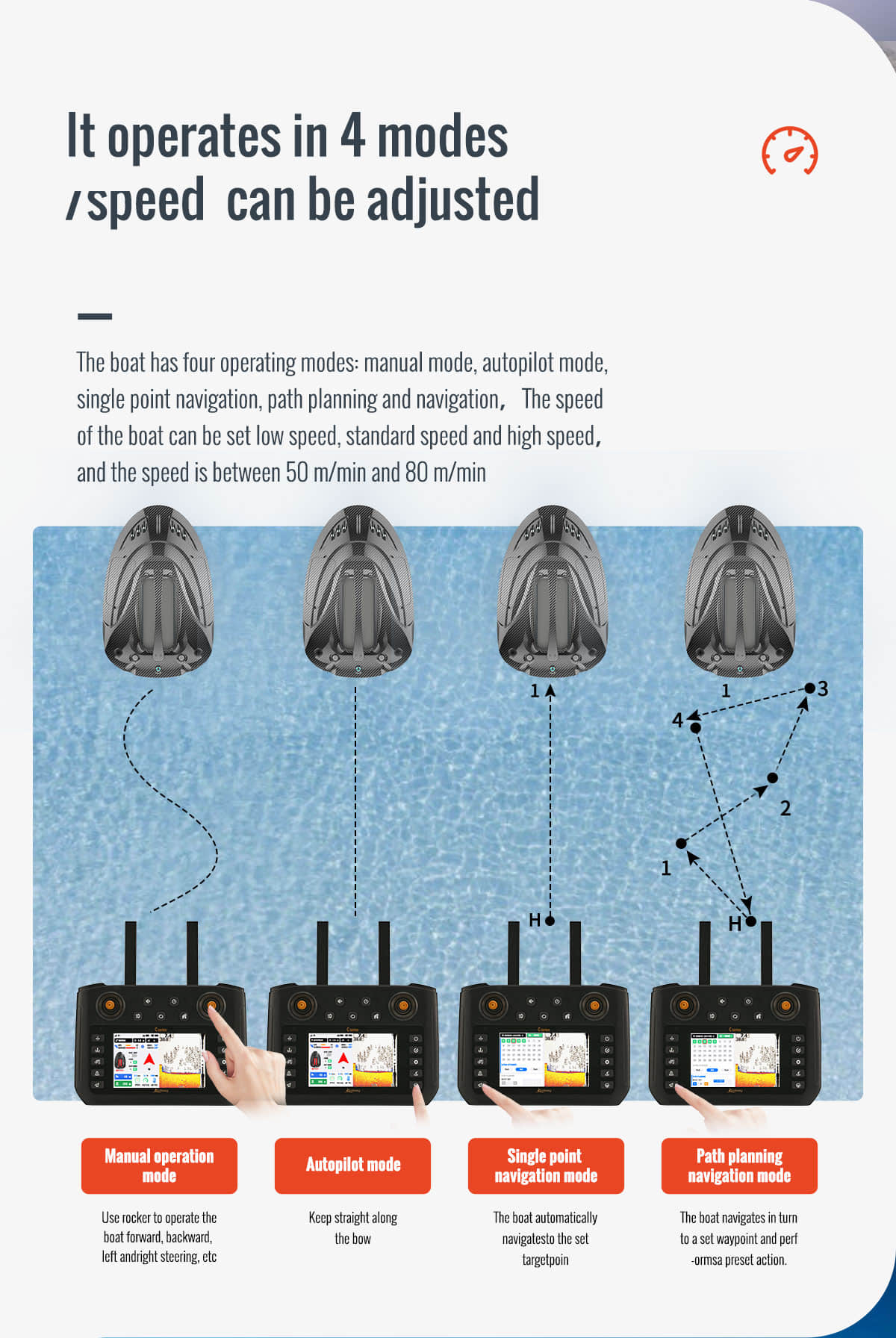

8.three operating modes
With manual mode, autopolite mode, navigation mode 3 Running state.

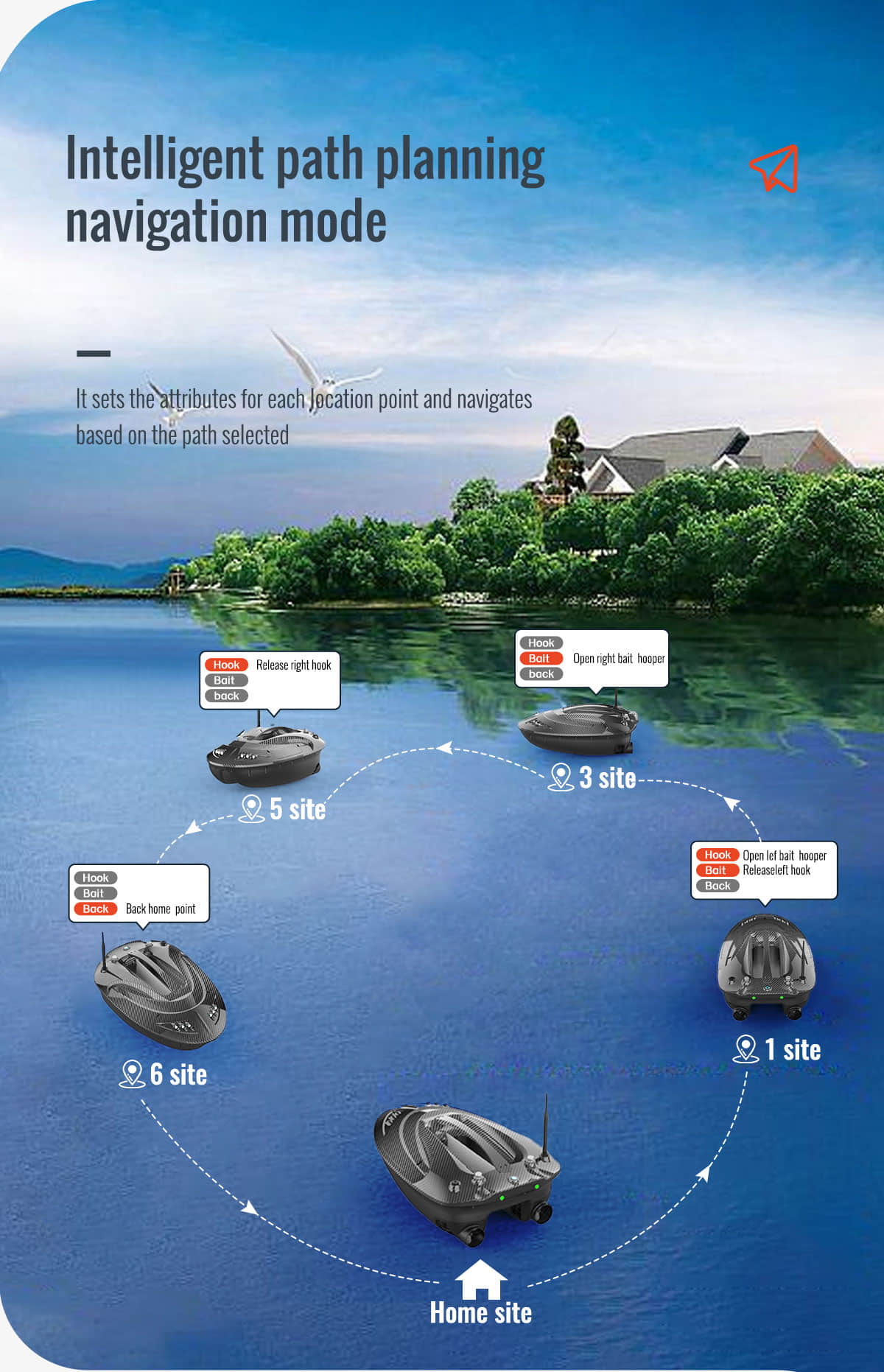

9.Fully automatic operation
You can freely choose "navigation only", "navigation + bait casting + return H point", "navigation + bait casting + decoupling + return H point" and other automatic operation modes.

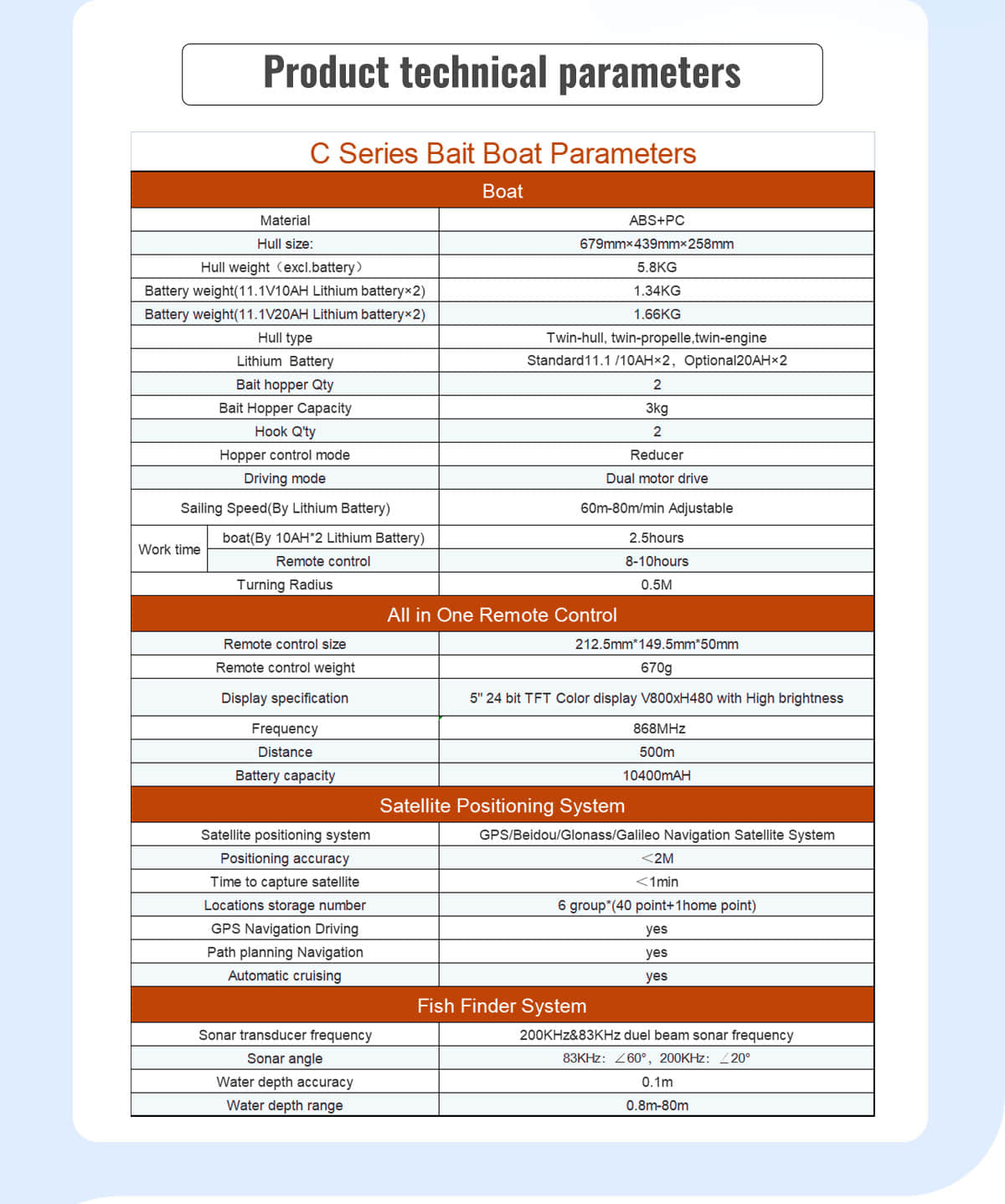

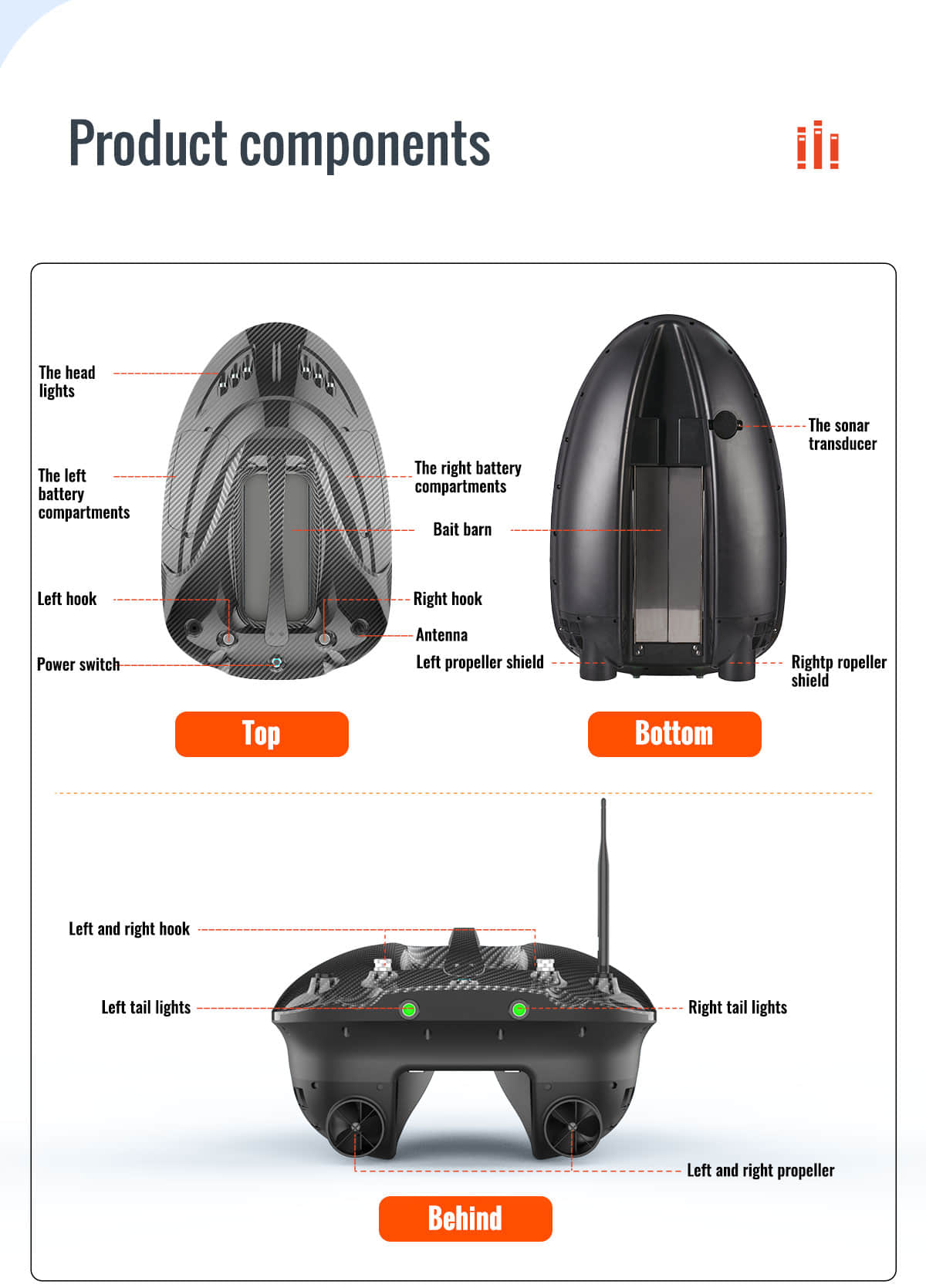

Boat
|
| Material |
ABS+PC |

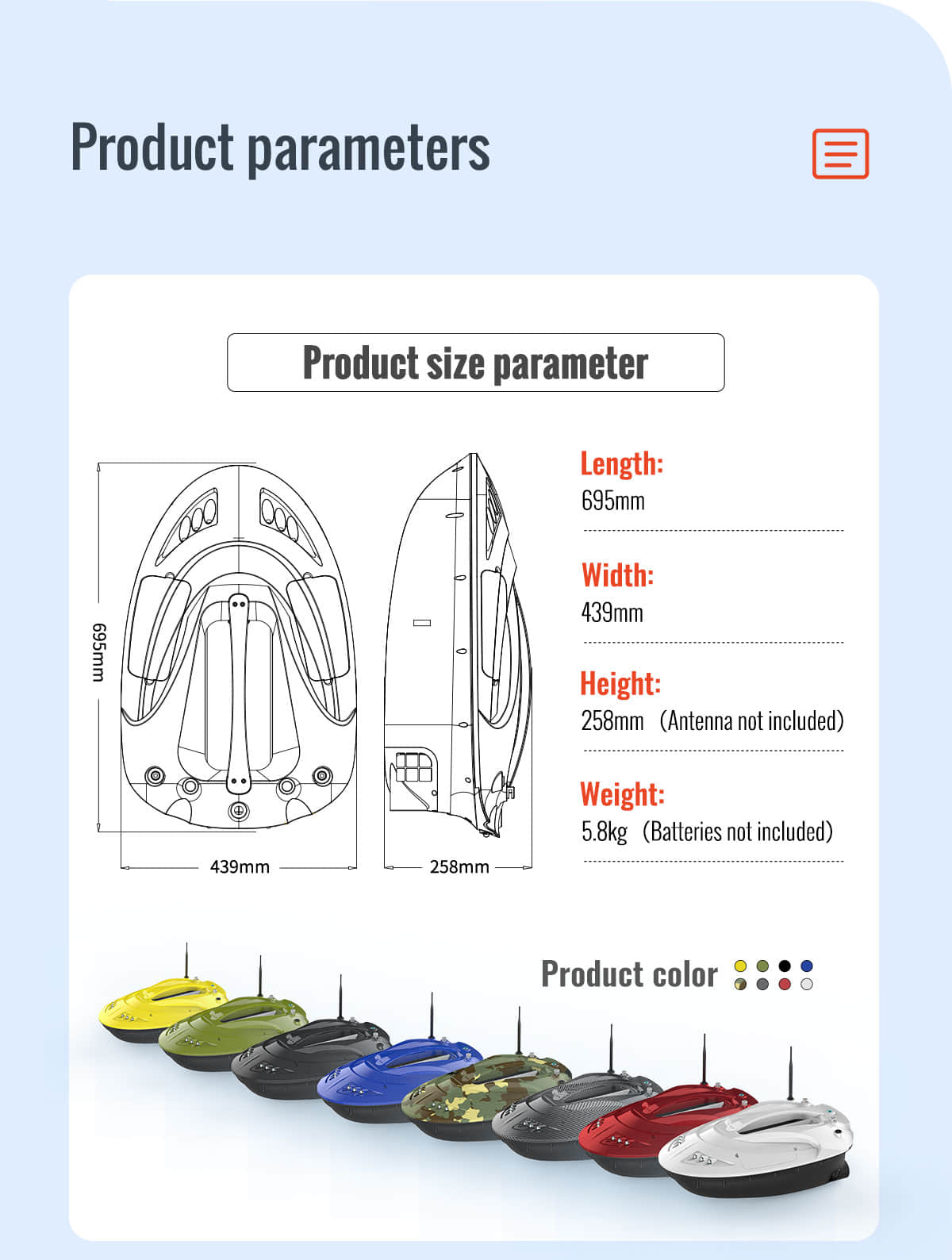

| Hull size: |
679mm×439mm×258mm |
| Hull weight（excl.battery） |
5.8KG |
| Battery weight(12V6AH Lead acid battery×2) |
3.8KG |
| Battery weight(11.1V10AH Lithium battery×2) |
1.34KG |
| Battery weight(11.1V20AH Lithium battery×2) |
1.66KG |
| Hull type |
Twin-hull, twin-propelle,twin-engine |
| power |
Lead acid battery |
12V/6AH×2 |
| Lithium Polymer Battery |
Standard11.1 /10AH×2，Optional20AH×2 |
| Bait hopper Qty |
2 |
| Bait Hopper Capacity |
3kg |
| Hook qty |
2 |
| Hopper control mode |
Reducer |
| Driving mode |
Dual motor drive，Brush motor |
| Sailing Speed |
By Lithium Polymer Battery |
50m-70m/min Adjustable |
| Working time |
boat(By Lead acid battery) |
1-1.5hours |
| boat(By Lithium Polymer Battery) |
2.5hours（Standard 10AH） |
| Remote control |
8-10hours |
| Turning Radius |
0.5M |

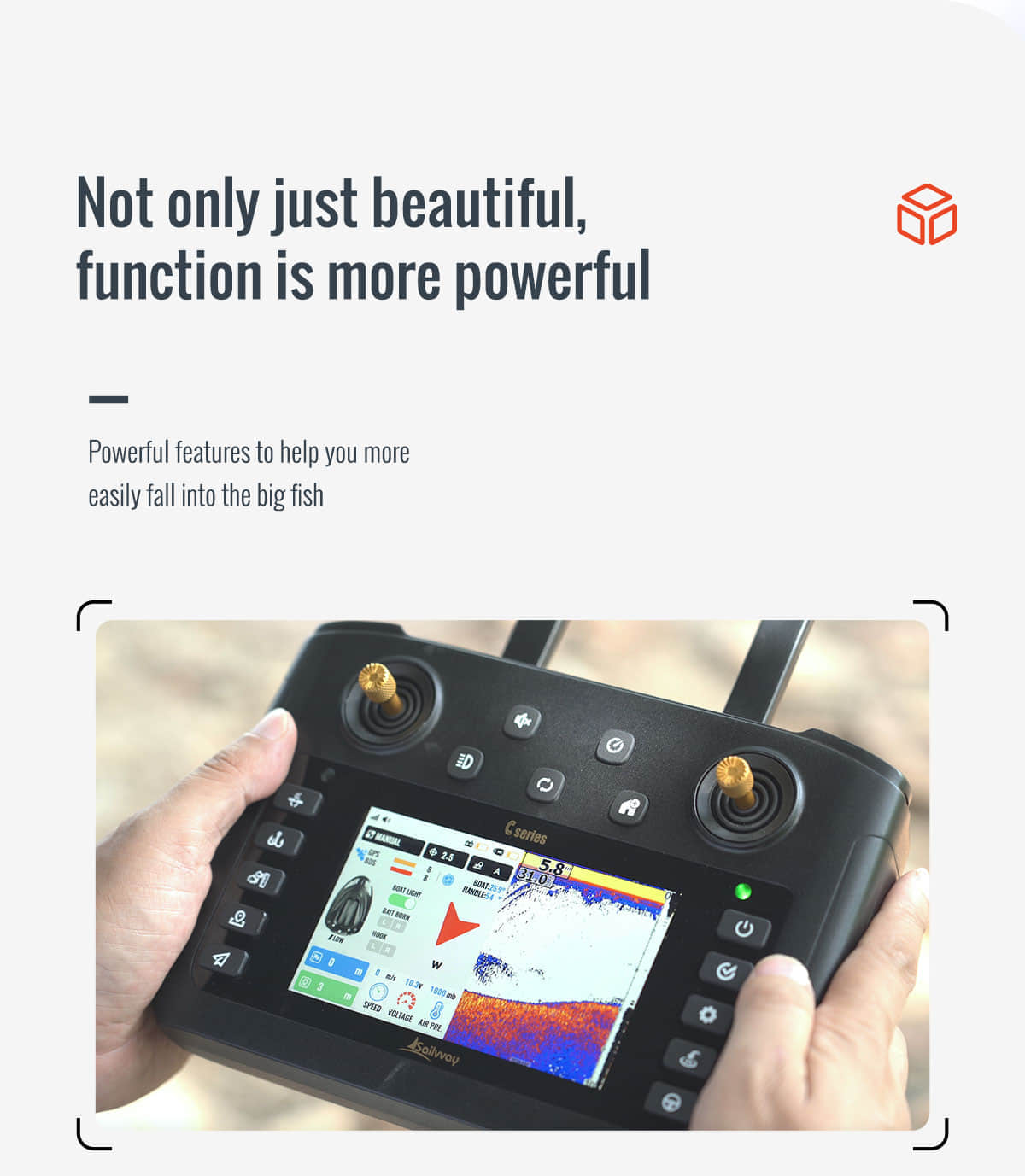

All in One Remote Control
|
| Remote control size |
200mm*136mm*46mm |
| Remote control weight |
480g |
| Display specification |
3.5" 18 bit TFT Color display V320xH240 with white LED front light，Superb viewing in direct at sun |
| Frequency |
Boat Control:2.4G or 868MHz， |
| Distance of remote control |
868MHz:500m，2.4GHz:400m |
| Distance of Sonar signal transmission |
400m |
| Battery capacity |
8000mAH |
| Satellite Positioning System |
| Satellite positioning system |
GPS/Beidou/Glonass/Galileo Navigation Satellite System |
| Positioning accuracy |
＜2M |
| Time to capture satellite |
＜1min |

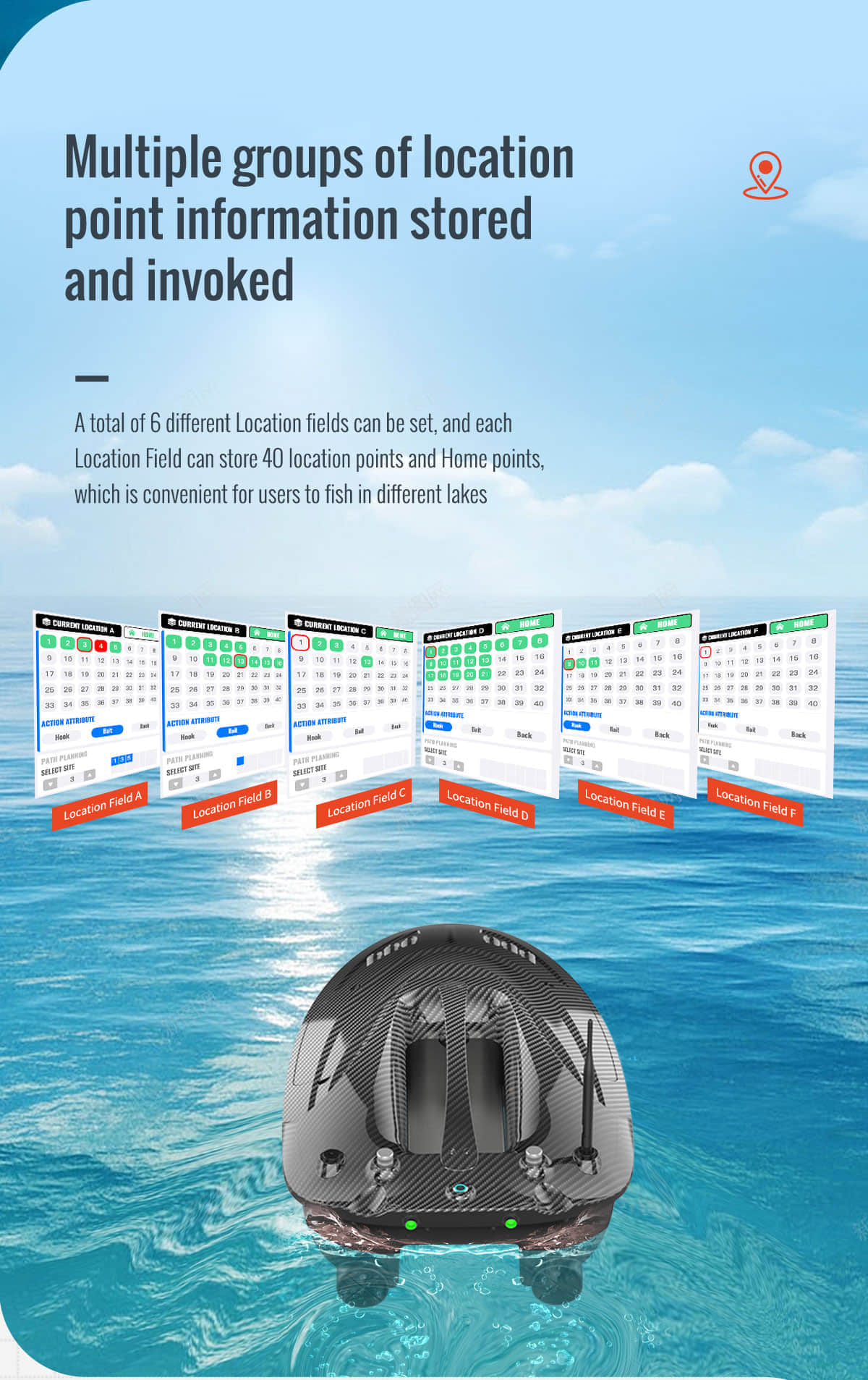

| Locations storage number |
32 point |
| GPS Navigation Driving |
yes |
| Automatic cruising |
yes |

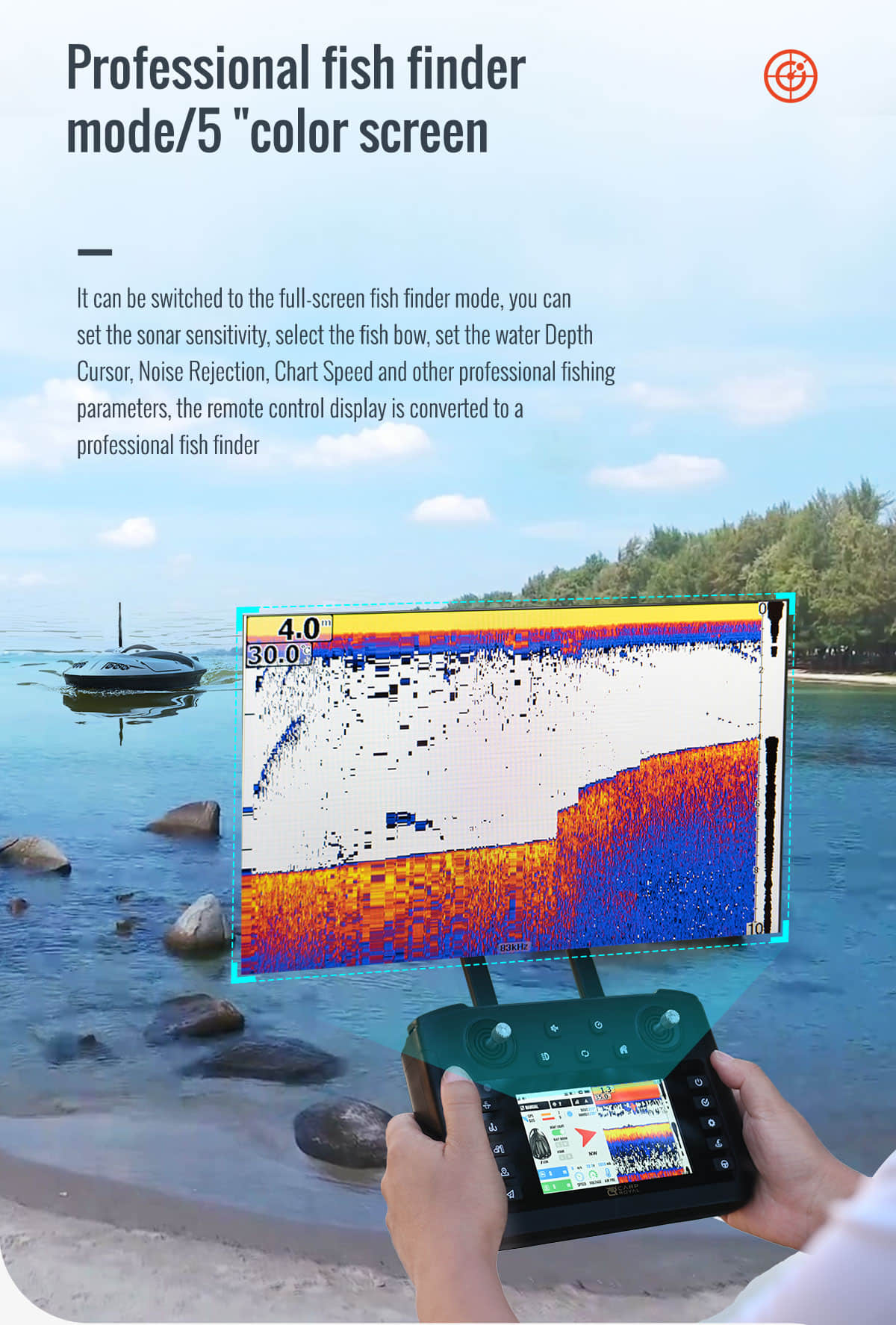

| Fish Finder System |
| Sonar transducer frequency |
200KHz&83KHz duel beam sonar frequency |
| Sonar angle |
83KHz：∠60°，200KHz：∠20° |
| Water depth accuracy |
0.1m |
| Water depth range |
0.6m-80m |
